| 起源の場所: | 中国 |
| ブランド名: | Brando |
| 証明: | CE |
| モデル番号: | BB14542505 |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | negotiable |
| パッケージの詳細: | 内部箱、カートン、パレット |
| 受渡し時間: | 4-8日 |
| 支払条件: | L/C、T/T、ウェスタン・ユニオン、Paypal、MoneyGram |
| 供給の能力: | 1ヶ月あたりにセット500000 |
| タイプ: | 0545 110-030 NASSのタイプ | 材料: | Thermoset樹脂、銅 |
|---|---|---|---|
| 製品名: | 0545 110-030 NASSのタイプ電磁弁のコイル システム13 | 電圧: | AC220V AC110V/DC12V DC24V （±10%） |
| 穴のサイズ: | 14.6 mm | 周囲温度: | - 20 °C | + 50 °C |
| 適用: | 水電磁弁および電子排水栓 | 絶縁材のクラス: | F、H |
| 結合方式: | DIN43650A | コネクターとの保護のある程度: | IP 65 （IP 67要求あり次第） |
| ハイライト: | 220V AC 113-030-0128 Bobine,220V AC 113-030-0121 Bobine,113-030-0133 113-030-0122ソレノイドのコイル |
||
220V AC 113-030-0128 113-030-0121 Nass Type Magnet System 13 Bobine

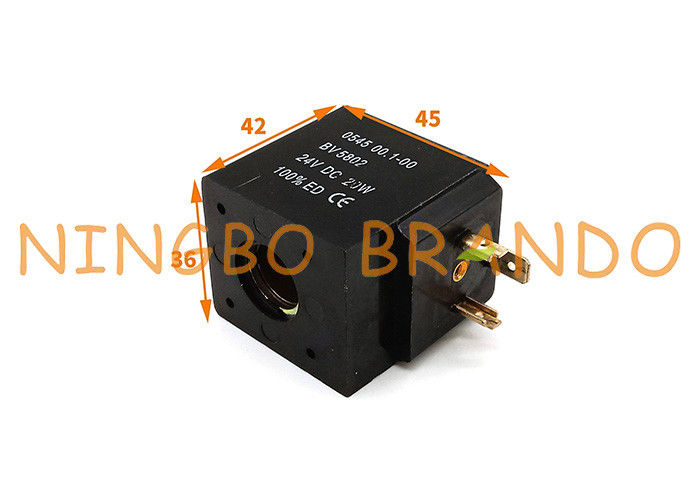

Main dimension of Nass Type 0545 Electronic Drain Solenoid Coils:
Technical parameter of 0545 110-030 NASS Type Solenoid Valve Coil:
| Code No | Voltages | Frequency(Hz) |
Power (W)
|
Power (VA) |
| 113-030-0123 | 24vDC | 4,1 | ||
| 113-030-0144 | 24VAC | 50 | 8,8 | |
| 113-030-0144 | 24VAC | 60 | 7,6 | |
| 113-030-0128 | 220VAC | 50 | 9,0 | |
| 113-030-0128 | 240VAC | 60 | 9,2 | |
| 113-030-0142 | 230VAC | 50 | 8,8 | |
| 113-030-0142 | 230VAC | 60 | 7,6 | |
| 113-030-0121 | 220VAC | 50 | 14,0 | |
| 113-030-0124 | 24VDC | - | 7,9 | |
| 113-030-0135 | 24VAC | 50 | 14,0 | |
| 113-030-0135 | 24VAC | 60 | 12,0 | |
| 113-030-0279 | 110 VAC | 50 | 13,9 | |
| 113-030-0279 | 110VAC | 60 | 12,2 | |
| 113-030-0125 | 24VDC | - | 11,9 | |
| 113-030-0129 | 24VAC | 50 | 21,0 | |
| 113-030-0129 | 24VAC | 60 | 18,0 | |
| 113-030-0126 | 110VAC | 50 | 21,5 | |
| 113-030-0141 | 230 VAC | 50 | 22,0 | |
| 113-030-0141 | 230VAC | 60 | 19,0 | |
| 113-030-0120 | 12VDC | - | 17,5 | |
| 113-030-0127 | 24VAC | 50 | 25,0 | |
| 113-030-0132 | 24VDC | - | 18,5 | |
| 113-030-0120 | 36VAC | 50 | 25,0 | |
| 113-030-0137 | 110VAC | 50 | 27,5 | |
| 113-030-0140 | 110VAC | 60 | 26,5 | |
| 113-030-0137 | 120VAC | 60 | 28,0 | |
| 113-030-0133 | 220VAC | 50 | 25,5 | |
| 113-030-0122 | 220VAC | 50 | 22,0 | |
| 113-030-0138 | 230VAC | 50 | 25,5 | |
| 113-030-0133 | 240VAC | 60 | 25,0 | |
| 113-030-0138 | 240VAC | 60 | 27,0 |
Phyical map of 113-030-0028 nass type electromagnetic coil:
Applicatoin of nass type 113-030-0035 electric magnetic coil:
More details about 0545 110-030 series Solenoid Coil can be found below the Youtube Video:
Attention:
1. This air suspension compressor pump solenoid coil is made of high quality components.
2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.
Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
