起源の場所: | 中国 |
ブランド名: | Brando |
証明: | CE |
モデル番号: | 1913BA-5-B |
最小注文数量: | 1 PC |
---|---|
価格: | Negotiation |
パッケージの詳細: | 内部箱、カートン、パレット |
受渡し時間: | 4-8日 |
支払条件: | L/C、T/T、PayPal、ウェスタン・ユニオン、MoneyGram |
供給の能力: | 1ヶ月あたりの100000 PC |
左舷サイズ: | 1/8"、1/4" | 開口部のサイズ: | 1.6mm、2.5mm、3.0mm |
---|---|---|---|
操作モード: | 普通閉まる2方法、 | 操作: | 直動式 |
ボディ材料: | 黄銅 | 働き媒体: | 空気、水、オイル、蒸気 |
シール材料: | NBR、FKM、EPDM | 圧力範囲: | 0から1.6 MPa |
電圧: | 12VDC、24VDC、24VAC、110VAC、220VAC | ||
ハイライト: | 電磁弁多岐管2の方法、多様な弁水ソレノイド、ソレノイドの多様な弁,Manifold Valve Water Solenoid,Solenoid Manifold Valves |

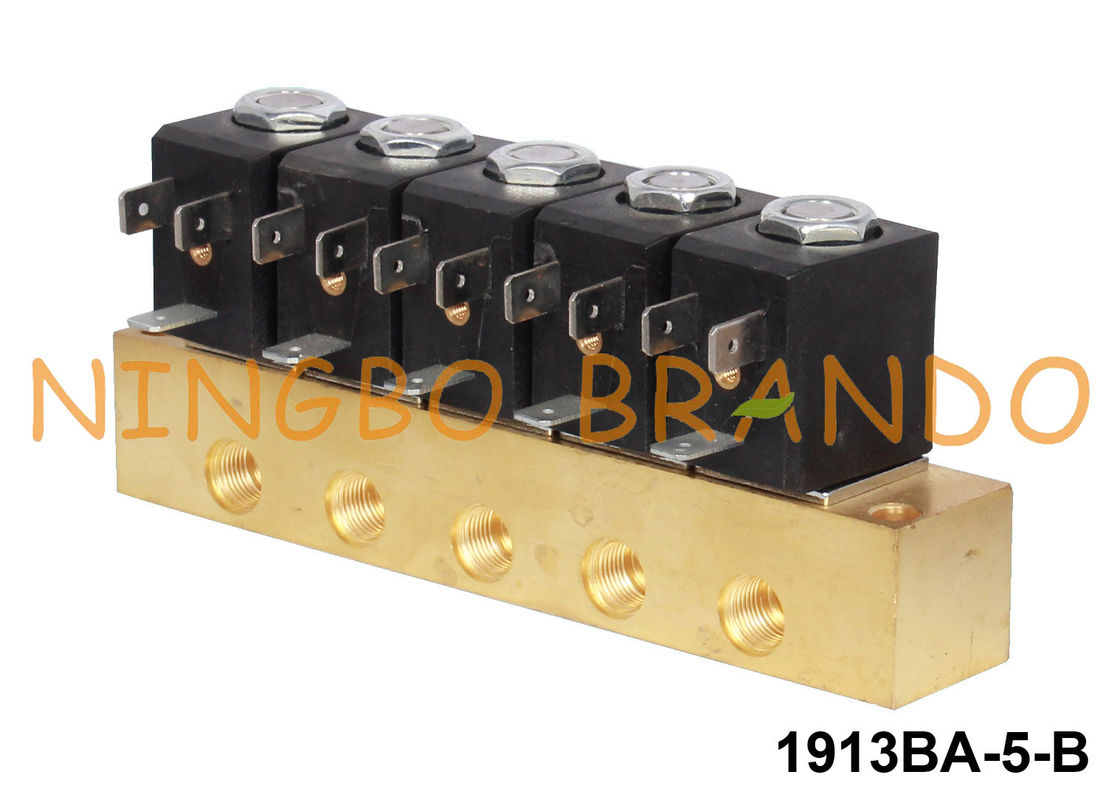

Multiple Manifold 2 Way Brass Solenoid Valve For Water Air
Product Features of Brass Solenoid Valve:
1. Working Medium: Air, Water, Steam, Oil etc.
2. Working Pressure Range: 0 to 1.6 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Connection Type: 1/8'', 1/4''
5. Orifice Size: 1.6mm, 2.5mm, 3mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of Brass Solenoid Valve:
2 Way Normally Closed
2 Way Normally Open
Main Dimension of Brass Solenoid Valve Manifold:
Brando Factory Production Video of Solenoid Valves:
BRANDO Factory Production Picture of Solenoid Valves:
Packaging and Shiping of Brando Solenoid Valves:
Internal Box | Carton | Pallet |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
