| 起源の場所: | 中国、ニンポー |
| ブランド名: | BRANDO |
| 証明: | CE, ISO |
| モデル番号: | BB31675001 |
| 最小注文数量: | 300pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 4〜7 営業日 |
| 支払条件: | L/C,T/T,ウェスタンユニオン,Paypal |
| 供給の能力: | 月に200000個 |
| 製品名: | 油圧ソレノイドバルブコイル | 電圧: | 12VDC、24VDC、AC110V、AC220V |
|---|---|---|---|
| 力: | 30W | コネクタ: | DIN43650A |
| 断熱クラス: | h | 保護クラス: | IP65 |
| レファレンス番号: | 4251228、4251230、4251232,4251233、4251234、4251257、438459、4407514 | ||
| ハイライト: | Hydac Hydraulic Solenoid Valve Coil,4WE Series Hydraulic Solenoid Valve Coil,Hydac 4WE Series Bobina |
||
Hydraulic Solenoid Valve Coil For Hydac 4WE Series 12V 24V 110V 220V
This is hydraulic solenoid coil for Hydac 4WE series hydraulic solenoid valves; Ordering code: 4251228, 4251230, 4251232,4251233, 4251234, 4251257, 438459, 4407514; Voltage: 12VDC, 24VDC; Power: 30W. The solenoid coil is the main part of a solenoid. A solenoid consists of the coil, the tube, and the armature. BRANDO manufactures and supplies different types of solenoid coils for many hydraulic solenoid valves. Our solenoid coil can be used for directional valves, proportional valves, cartridge valves, pumps and much more.

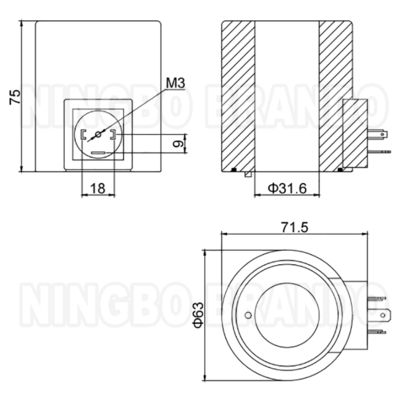

Dimension of Hydraulic Solenoid Valve Coil:
|
BRANDO Model
|
BB31675001
|
|
Voltages
|
12VDC, 24VDC, 110VAC, 220VAC
|
|
Power
|
30W
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|
|
Insulation Class
|
H
|
BRANDO Solenoid Valve Coils Production Video:
