ホーム 製品油圧電磁弁のコイル

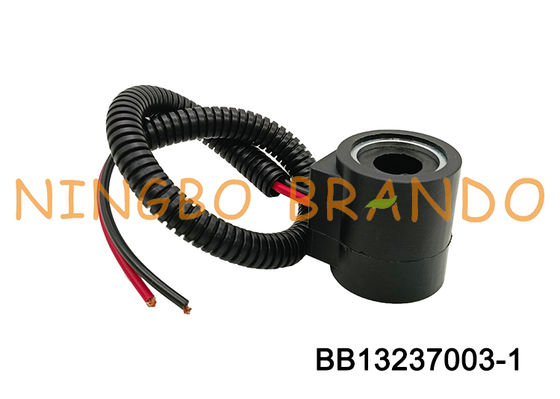

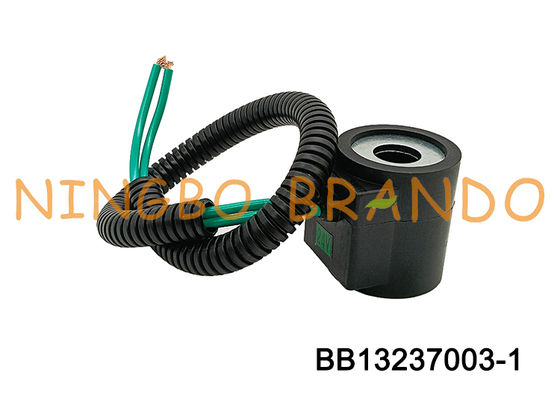

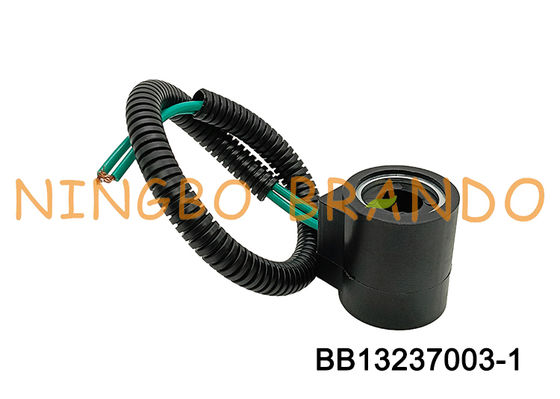

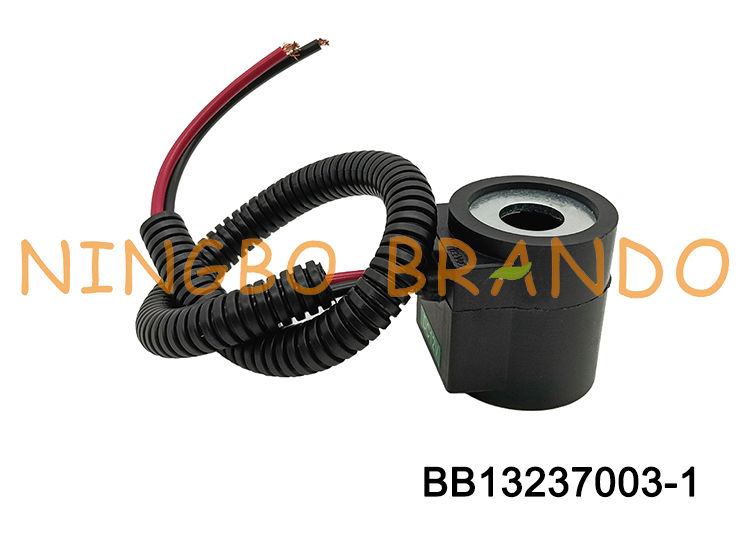

Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC

Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC

  • Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC
  • Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC
  • Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC
  • Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC
Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC
商品の詳細:
起源の場所: ニンボ、中国
ブランド名: BRANDO
証明: CE, ISO
モデル番号: BB13237003-1
お支払配送条件:
最小注文数量: 500pcs
価格: 交渉可能
パッケージの詳細: 箱、カートン、パレット
受渡し時間: 15営業日
支払条件: T/T、PayPal、Western Union
供給の能力: 月額50000pc
連絡先
詳細製品概要
製品名: 油圧ソレノイドコイル 電圧: 12VDC、24VDC
力: 14.5W、18W コネクタ: 飛行鉛
REF 番号: 6309412 6309424 6302012 6302024 6309312 6671025 6309311 6677153 6678696 6667688 63022011
ハイライト:

Hydraulic Solenoid Coil 12v

,

Hydraulic Solenoid Coil 24v

,

Hydraulic Solenoid Coil

Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC



This solenoid coil is popularly used in hydraulic solenoid valves. The reference number is 6309412, 6309424, 6302012, 6302024, 6309312, 6671025, 6309311, 6677153, 6678696, 6667688, 6302201. The standard voltage is 12VDC or 24VDC, the standard power is 14.5W or 18W, other voltages and powers can be customized as your request, with flying leads, the lead length can be customized as you want. If you have any demands or questions, pls contact us!



Main Dimension:

Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC 0



Technical Data:

BRANDO Model
BB13237003-1
Voltage
12VDC, 24VDC
Power
14.5W, 18W
Other voltage and power can be customized
Connector
Flying Leads







Our Production:

Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC 1



FAQ: How to choose a matching solenoid coil?



1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.



More Hydraulic Coils:

Hydraulic Solenoid Coil 6302012 12VDC 6302024 24VDC 2


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
