| 起源の場所: | ニンボ、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | 3-12V10 |
| 最小注文数量: | 1pc |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 4〜7 営業日 |
| 支払条件: | T/T、PayPal、Western Union |
| 供給の能力: | 月額50000pc |
| 製品名: | パイロットバルブ | 動作圧力: | 0から125のpsi |
|---|---|---|---|
| パイロットバルブポートスレッド: | NPT1/8" | 囲み管の糸: | NPT3/4" |
| パイロット数: | 10 | 箱体材: | アルミニウム（ダイキャスト） |
| シール素材: | NBR | コイルタイプ: | QT2 (スクリュー/スペード) |
| 供給電圧: | 24VDC、24VAC、110VAC、220VAC | REF 番号: | 3-12V10000-330、3-12V10000-336、3-12V100-331、3-12V10000-332、RCA3-12V10000-330、RCA3-12V10000-336、RCA3-1 |
| ハイライト: | GOYEN Pilot Box,GOYEN Pilot Enclosure,GOYEN 3-12V10 |
||

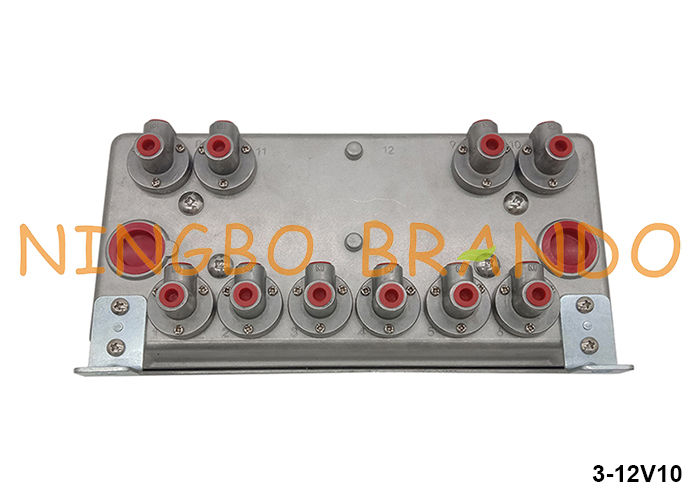

3-12V10 Goyen Type Solenoid Pilot Valve Enclosure

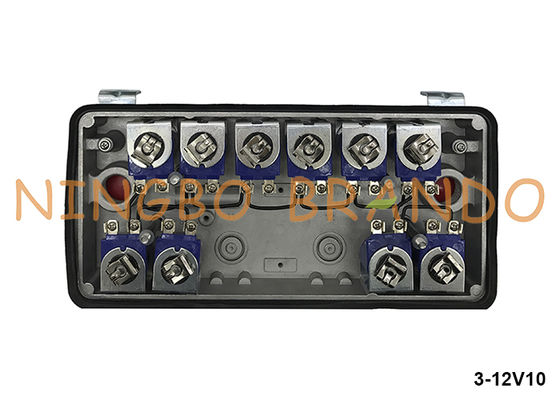

This is a 3-12V10 (RCA3-12V10) diecast aluminum enclosure with 10pcs RCA3D pilot valves inside. The reference number of this enclosure is RCA3-12V10000-330, RCA3-12V10000-336, RCA3-12V10000-331, RCA3-12V10000-332, 3-12V10000-330, 3-12V10000-336, 3-12V10000-331, 3-12V10000-332, etc. The coil voltage can be 220VAC, 110VAC, 24VAC or 24VDC. The enclosures for non-hazardous locations offer reliable protection for your pilot valves and remote actuators. The enclosures were specifically designed for convenient piloting of dust collector cleaning system pulse jet valves.
Ordering Code:
Main Dimension:
RCA3D Valve Options:
|
Model
|
Port Size
|
Coil Type
|
Voltage
|
Power
|
|
RCA3D0-330
(Old RCA3D2-T-QT/1392B)
|
1/8'' NPT
|
QT2
(Screw / Spade)
|
200/240V 50/60Hz
|
17.4/22.6VA
|
|
RCA3D0-331
(Old RCA3D2-T-QT/1004B)
|
100/120V 50/60Hz
|
15.2/149.7VA
|
||
|
RCA3D0-332
|
24V 50/60Hz
|
23.1/17.2VA
|
||
|
RCA3D0-333
|
240V DC
|
24W
|
||
|
RCA3D0-334
|
110V DC
|
24W
|
||
|
RCA3D0-335
|
48V DC
|
20W
|
||
|
RCA3D0-336
(Old RCA3D2-T-QT/764B)
|
24V DC
|
20W
|
||
|
RCA3D0-337
(Old RCA3D2-T-QT/1295B)
|
12V DC
|
20W
|
||
|
RCA3D1-330
(Old RCA3D2-T-QT/880B)
|
1/8'' BSPP
|
200/240V 50/60Hz
|
17.4/22.6VA
|
|
|
RCA3D1-331
(Old RCA3D2-T-QT/869B)
|
100/120V 50/60Hz
|
15.2/149.7VA
|
||
|
RCA3D1-332
(Old RCA3D2-T-QT/1117B)
|
24V 50/60Hz
|
23.1/17.2VA
|
||
|
RCA3D1-333
|
240V DC
|
24W
|
||
|
RCA3D1-334
|
110V DC
|
24W
|
||
|
RCA3D1-335
|
48V DC
|
20W
|
||
|
RCA3D1-336
(Old RCA3D2-T-QT/1051B)
|
24V DC
|
20W
|
||
|
RCA3D1-337
|
12V DC
|
20W
|
Our Production:
