| 起源の場所: | ニンボ、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | BD-Z-40S-304 |
| 最小注文数量: | 8pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 4〜7 営業日 |
| 支払条件: | T/T、PayPal、Western Union |
| 供給の能力: | 月額50000pc |
| 製品名: | パルスバルブ | 応用: | 集じん器 |
|---|---|---|---|
| ポートサイズ: | G1.5 '' | バルブタイプ: | 右角,スレッド |
| 体材: | ステンレス鋼304 | 横隔膜材料: | fkm |
| 作業圧力: | 0.1〜0.8 MPa | 電圧: | 24VDC、24VAC、110VAC、220VAC |
| ハイライト: | Pulse Valve Stainless Steel,Stainless Steel Pulse Diaphragm Valve,Stainless Steel Pulse Valve For Dust Collector |
||

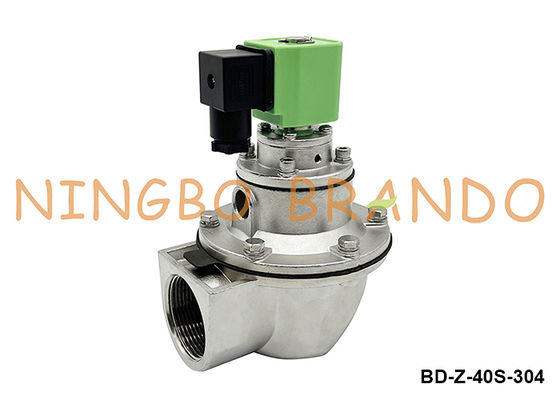

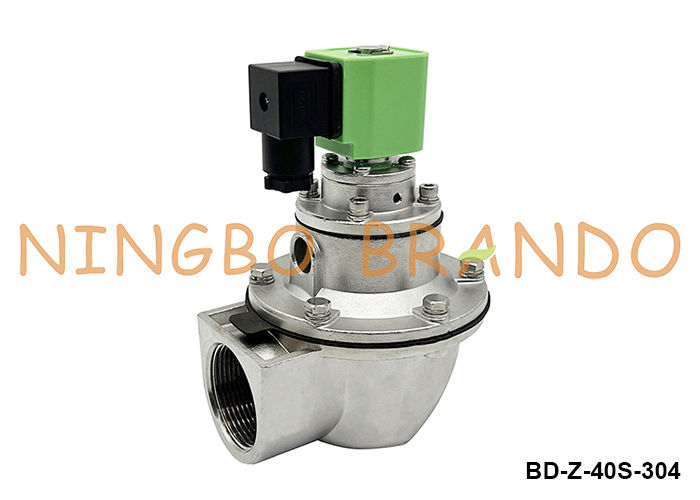

1.5'' Stainless Steel Pulse Valve
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different design of pulse valve:
1. Threaded Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Technical Data:
| Model No | BD-Z-20-304 | BD-Z-25-304 | BD-Z-40S-304 | BD-Z-50S-304 | BD-Z-62S-304 | BD-Z-76S-304 | BD-Z-102S-304 |
| Port Size | 3/4'' | 1'' | 1-1/2'' | 2'' | 2-1/2'' | 3'' | 4'' |
| Diaphragm Number | 1 | 2 | |||||
| Diaphragm Material | FKM | ||||||
| Body Material | Stainless Steel 304 | ||||||
| Working Pressure Range | 0.1 to 0.8 MPa | ||||||
| Coil Voltage | 24VDC, 24VAC, 110VAC, 220VAC | ||||||
BD-Z-40S-304 Dimension:
Our Production:
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
