| 起源の場所: | ニンボ、中国 |
| ブランド名: | BRANDO |
| 証明: | CE, ISO |
| モデル番号: | BAO-105 |
| 最小注文数量: | 4pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 4〜7 営業日 |
| 支払条件: | T/T、PayPal、Western Union |
| 供給の能力: | 月額50000pc |
| 製品名: | パルスバルブ | ポートサイズ: | 3 '' |
|---|---|---|---|
| 手術: | 作動する試験ピストン | 最大動作圧力: | 1000kPa |
| 最大動作温度: | 125℃ | 電圧: | DC24V、AC110V、AC220V |
| REF 番号: | V1617803-0100, V1617803-0200, V1617803-0300, V1617803-0400, V1617803-0500 | ||
| ハイライト: | V1617803 Pulse Jet Valve,Optipow 105 Pulse Jet Valve,Alstom Optipow 105 Valve |
||

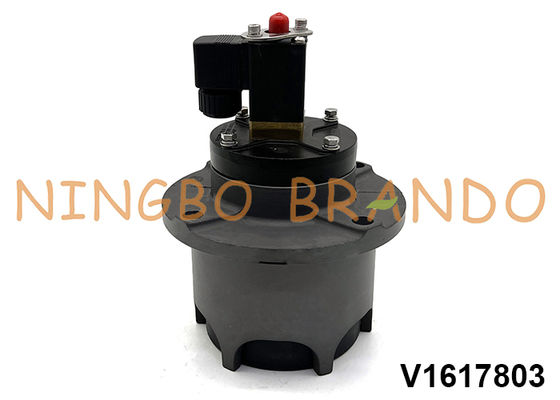

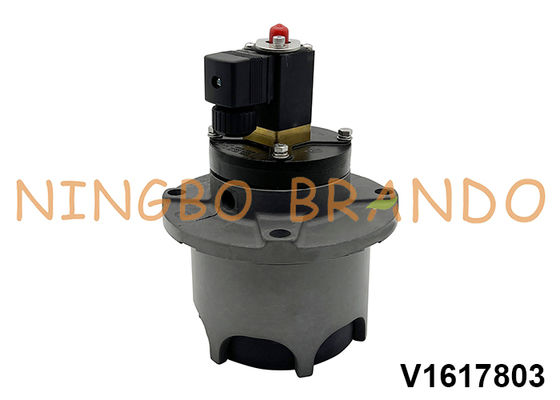

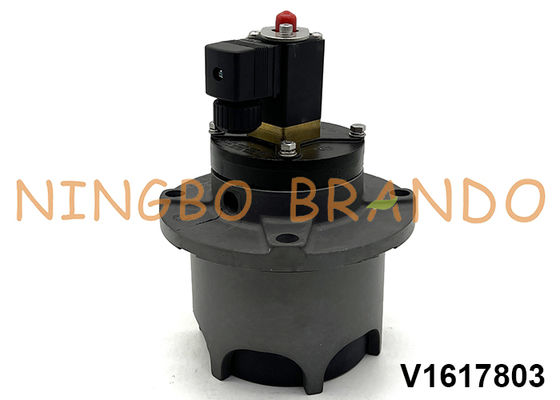

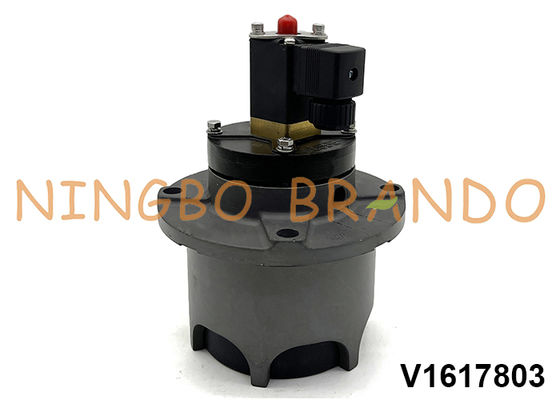

V1617803 Alstom Optipow Type 105 3'' Pulse Jet Valve V1617803-0100 V1617803-0500
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in dust collector, controlled by the electric signals from a pulse controller. Pulse valve can be integral pilot type or remote pilot type diaphragm valve, specially designed in dust collector systems in cement, ceramics, paint, feed thermal power plants, concrete plants, detergent, glass, iron and steel industry, etc.
Different pulse jet valve types:
1. Threaded Type
2. Fixed Nut Type
3. Flanged Type
4. Embedded Type
5. Straight Through Type
Technical Data:
|
Integral Pilot
BRANDO Model
|
BAO-105
|
BAO-135
|
|
Remote Pilot
BRANDO Model
|
RBAO-105
|
RBAO-135
|
|
Port Size
|
3''
|
4''
|
|
Operation
|
Piston Pilot Operated
|
|
|
Max Working Pressure
|
1000 kPa
|
|
|
Max Working Temperature
|
125 ℃
|
|
|
Voltage
|
24VDC, 110VAC, 220VAC
|
|
BAO-105 Dimension:
Our Production:
Related Products:
|
|
|
|
| Diaphragm | Piston | Solenoid Valve | 135 Pulse Valve |
