| 起源の場所: | ニンボ、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | CAC20T4 |
| 最小注文数量: | 8pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 4~5 営業日 |
| 支払条件: | T/T、PayPal、Western Union |
| 供給の能力: | 月額50000pc |
| 製品名: | パルスバルブ | ポートサイズ: | G3/4'' |
|---|---|---|---|
| 体材: | アルミニウム（ダイキャスト） | 横隔膜材料: | TPE （衝撃波） |
| 作業圧力: | 5〜125 psi | 電圧: | 24VDC、24VAC、110VAC、220VAC |
| 応用: | 集じん器 | REF 番号: | CAC25T4012,CAC25T4002,CAC25T4022 について |
| ハイライト: | GOYEN CAC20T4012 Pulse Valve,GOYEN CAC20T4022 Pulse Valve,GOYEN CAC20T4002 Diaphragm Valve |
||

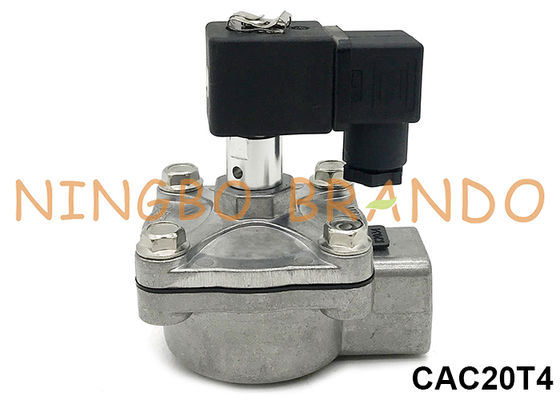

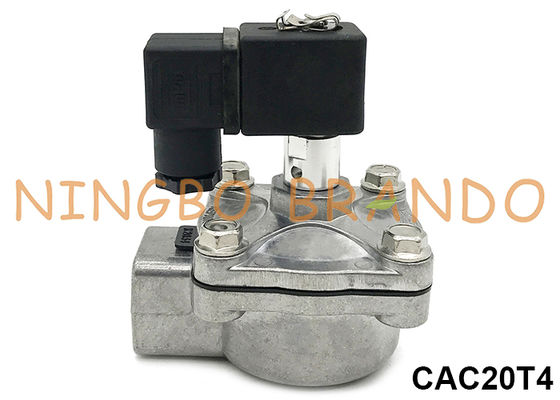

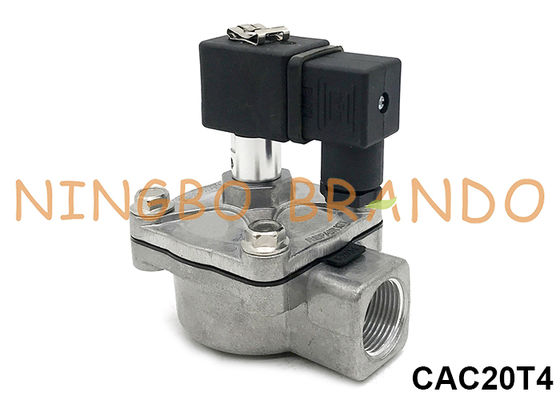

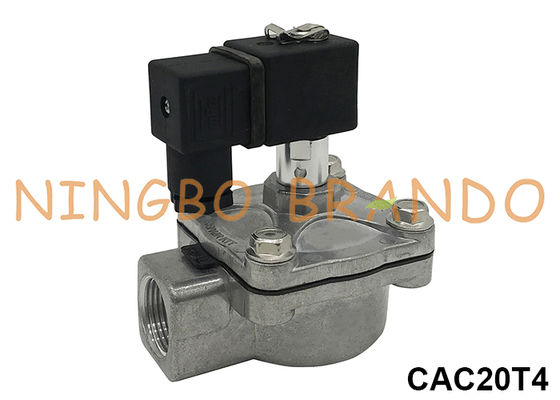

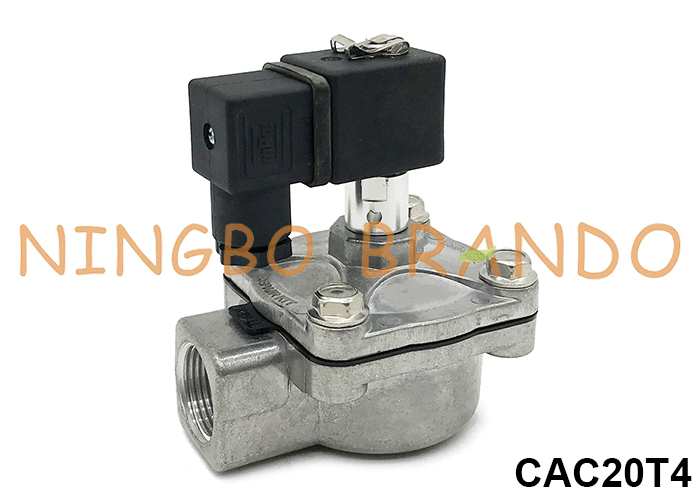

CAC20T4 GOYEN Type 4 Series 3/4'' Pulse Valve For Dust Collector System 24V 220V
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Technical Data:
| Integral Pilot | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T | CAC20T4 | CAC25T4 |
| Remote Pilot | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T | RCAC20T4 | RCAC25T4 |
| Orifice Size (mm) | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 | 20 | 25 |
| Port Size (Inch) | 1/2'' | 3/4'' | 1'' | 1-1/2'' | 1-1/2'' | 2'' | 2-1/2'' | 3'' | 3/4'' | 1'' |
| Pilot Size | 1/8'' | 1/4'' | 1/8'' | |||||||
| Diaphragm Number | 1 | 2 | 1 | |||||||
| Working Pressure | 5 to 125 psi | |||||||||
| Diaphragm Material | NBR (Standard), FKM (Oprtional) | Shockwave | ||||||||
| Body Material | Aluminum (diecast) | |||||||||
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC | |||||||||

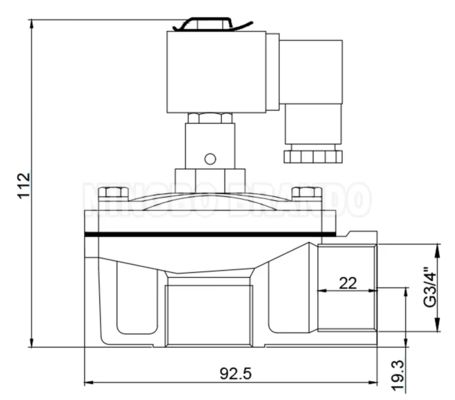

CAC20T4 Dimension:
Our Production:
Related Products:
|
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
