| 起源の場所: | ニンボ、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | WPS-CA/EP50 |
| 最小注文数量: | 8pcs |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 支払いが着陸してから約4~7営業日 |
| 支払条件: | T/T、PayPal、Western Union |
| 供給の能力: | 月額50000pc |
| 製品名: | パルスバルブ | ポートサイズ: | 2 '' |
|---|---|---|---|
| 体材: | アルミニウム（ダイキャスト） | 横隔膜材料: | NBR |
| 作業圧力: | 0.4〜6バー | 電圧: | 24VDC、24VAC、110VAC、220VAC |
| 応用: | 集じん器 | ||
| ハイライト: | WPS-CA/EP50 Pulse Jet Valve,WATSON Pulse Jet Valve,WPS-CA/EP50 Dust Collector Valve |
||

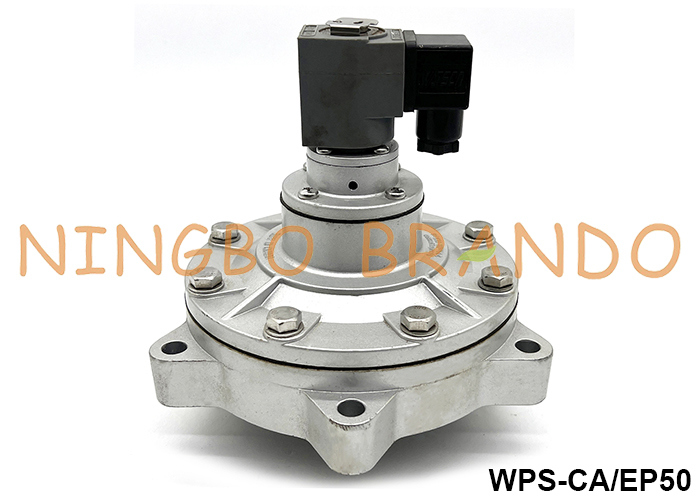

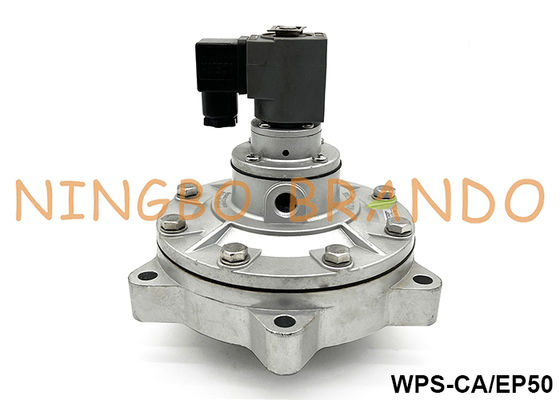

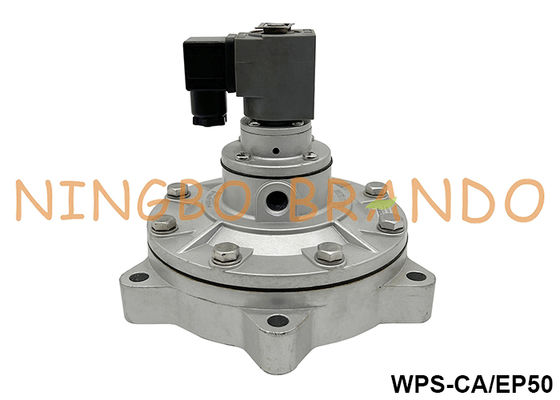

WPS-CA/EP50 WATSON Type Pulse Jet Valve For Dust Filter 2'' 24V 110V 220V
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Threaded Type
2. Manifold Flat Mount Type
3. Dresser Nut Type
4. Straight Through Type
5. Flanged Type
Technical Data:
| Model No | WPS-CA/EG25 | WPS-CA/EG40 | WPS-CA/EP50 | WPS-CA/EP62 | WPS-CA/EP76 | WPS-CA/EP102.B | WPS-CA/EP102 |
| Port Size | 1'' | 1-1/2'' | 2'' | 2-1/2'' | 3'' | 4'' | 4'' |
| Orifice Size | 25 | 40 | 50 | 62 | 76 | 102 | 102 |
| Diaphragm Material | NBR | ||||||
| Body Material | Aluminum | ||||||
| Pressure Range | 4 to 6 bar | ||||||
| Voltage | 24VDC, 24VAC, 110VAC, 220VAC | ||||||
WPS-CA/EP50 Dimension:
Our Production:
Related Products:
|
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
