| 起源の場所: | 中国 |
| ブランド名: | Brando |
| 証明: | CE |
| モデル番号: | SCG353A043 |
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | L/C、T/T、ウェスタンユニオン |
| 供給の能力: | 1か月あたり100000PC |
| ポートサイズ: | G3/4'' | Nonimalの直径: | φ20 |
|---|---|---|---|
| バルブタイプ: | 直角 | 接続タイプ: | ねじ付き |
| メディア: | 空気 | 使用圧力: | 0.3~0.8MPa |
| 電圧: | AC220V、AC110V、AC24V、DC24V | アクションタイプ: | デアフラグマ・パイロットの操作 |
| 横隔膜材料: | NBR、TPE | バルブボディ材料: | アルミニウム |
| ハイライト: | Pulse Valve SCG353A043,Right Angle Diaphragm,3/4'' SCG353A043 Pulse Valve |
||

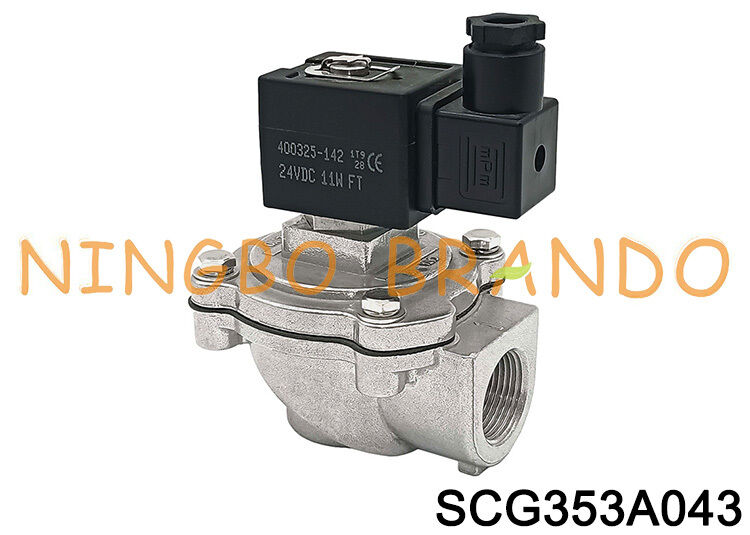

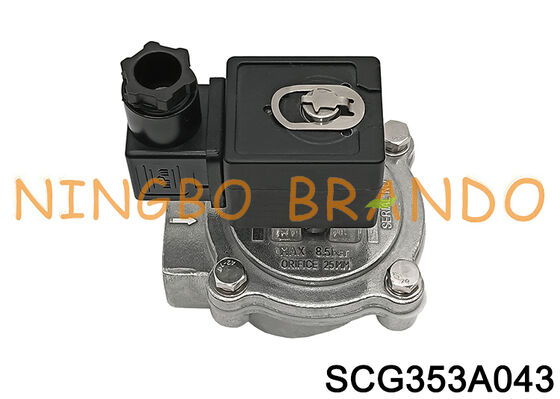

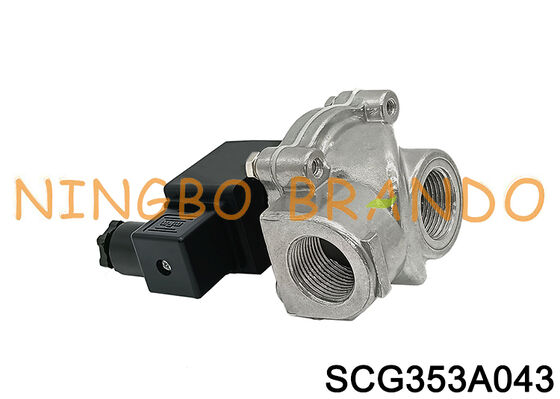

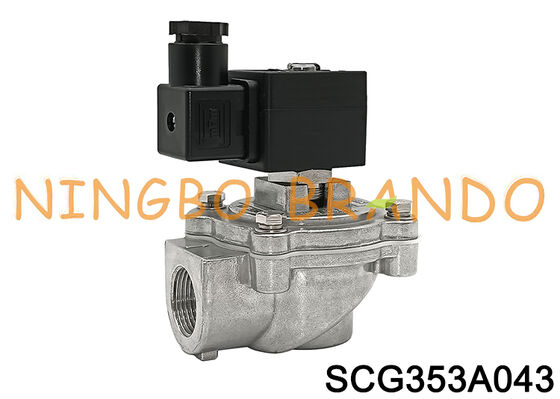

3/4'' SCG353A043 Right Angle ASCO Type Series 353 Dust Collector Pulse Valve
353 Series is a high-performance pulse jet valve with threaded ports. Available with integral pilot or as a remotely piloted valve. Outlet at 90°.
Construction:
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile
Spring: 304 SS
Screw: 302 SS
Pulse jet valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device.Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Youtube Video of SCG353A043 Right Angle Pneumatic Pulse Valve:
Technical Data:
| Model No | SCG353A043 |
| Port Size | G 3/4 Inch |
| Nornimal Size | Φ20 |
| Working Pressure | 0.3~0.8Mpa |
| Working Temperature | -5~+55℃ |
| Relative Humidity | ≤85% |
| Working Medium | Air |
| Protection Class | IP65 |
| Service Life | Over 1000000 times |
| Voltage | AC220V, AC110V, AC24V, DC24V |
Dimension of SCG353A043 Dust Collector Pulse Valve:
|
Model No.
|
BB11036001
|
|
Ref No.
|
400325
|
|
Voltage
|
AC24V, AC110V, AC220V, DC12V, DC24V
|
|
Connection
|
DIN 43650A
|
|
Other can be customized, please contact us.
|
|
|
Model No.
|
BAPC211037301
|
|
Ref No.
|
C113444
|
|
NC/NO
|
NC
|
|
2 Way or 3 Way
|
2Way
|
|
Other can be customized, please contact us.
|
|
|
Model No.
|
A043
|
|
Ref No.
|
C113443
|
|
Replace For
|
SCG353A043
|
|
Mounting Hole Dia.
|
6.5mm
|
|
Sealing Disc OD
|
/
|
|
Ref. Number
|
SCG353A043
|
|
Working Pressure
|
0.3~0.8Mpa
|
|
Voltage
|
24V DC, 110V AC, 220V AC
Other voltages can be customized. |
|
Diaphragm Nos
|
1
|
|
Port Size
|
G3/4''
|
|
Other requirement please contact.
|
|
Details About SCG353A043 Pilot Operated Solenoid Pusle Valve:
More ASCO Type Pulse Valve For You to Choose:
Right Angle Type Remote Pilot Type Immersion Type
Diaphragm Solenoid Coil Armature Assembly Pulse Controller
