| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | CE |
| モデル番号: | C113443、C113444 |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | ビニール袋、箱、カートン、パレット |
| 受渡し時間: | 4〜7 営業日 |
| 支払条件: | L/C、T/T、Paypal、ウェスタン・ユニオン |
| 供給の能力: | 1か月あたり100000セット |
| 製品名: | パルスバルブダイアフラム | 注文コード: | C113443、C113444、C113-443、C113-444 |
|---|---|---|---|
| 横隔膜材料: | TPE、NBR、FKM | 1セット: | ダイヤフラム1個、スプリング1個。 |
| 取り付けられたパルスバルブポート: | 3/4 ''、1 '' | フィットパルスバルブモデル: | SCG353A043、SCG353A044、G353A041、G353A042 |
| ハイライト: | ASCO Diaphragm C113443,ASCO Diaphragm C113444,ASCO Pulse Valve Diaphragm |
||

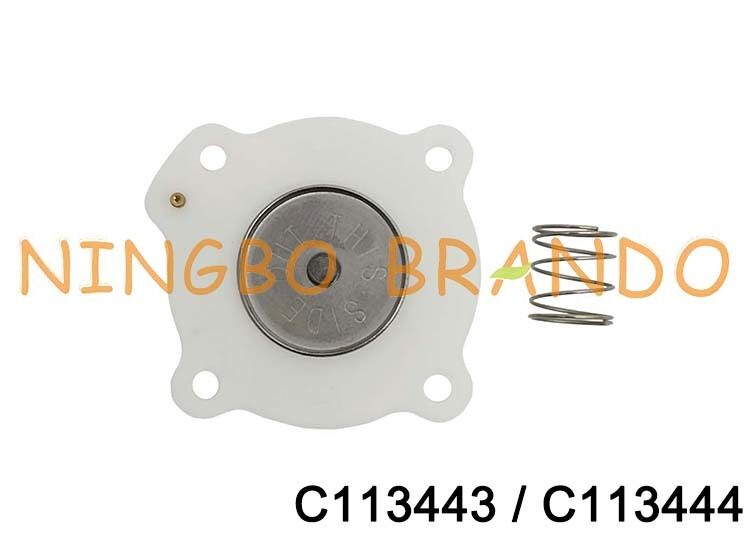

C113443 C113444 Diaphragm Repair Kit For SCG353A043 SCG353A044 ASCO Pulse Valve
C113443, C113444, C113-443, C113-444 Diaphragm (Membrane) for ASCO pulse valve SCG353A043, SCG353A044, G353A041, G353A042; TPE, NBR, Viton are all available; Pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
Ordering Number of Diaphragm For ASCO Pulse Valve:
|
Valve Port Size
|
Pulse Valve Model
|
Diaphragm Model
|
Diaphragm Material
(FKM is also available)
|
|
3/4''
|
SCG353A043
|
C113444
|
TPE (White), NBR (Black)
|
|
1''
|
SCG353A044
|
||
|
3/4''
|
SCG353-052
|
||
|
1''
|
SCG353-053
|
||
|
3/4''
|
SGG353A043
|
||
|
1''
|
SGG353A044
|
||
|
3/4''
|
SGG353-052
|
||
|
1''
|
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
|
C113827
|
NBR
|
|
SGG353A065
|
|||
|
2''
|
SCG353A050
|
C113685, C113686
|
NBR
|
|
2 1/2''
|
SCG353A051
|
||
|
3''
|
SCXE353.060
|
C123432, C123433
|
NBR
|
|
SCG353D060
|
|||
|
3/4''
|
G3530A41
|
C113443
|
NBR
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR
|
|
G353-066
|
|||
|
1 1/2''
|
G353A046
|
C113826
|
NBR
|
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
NBR
|
|
2 1/2''
|
G353A049
|
Main Dimension of C113443, C113444 Diaphragm:
Product Video of C113443, C113444 Membrane:
Pictures of Pulse Valve Diaphragm Production:
More Related Products For you to choose:
|
|
|
|
| Threaded Type | Remote Pilot Type | Straight Through Type | Submerged Type |
|
|
|
|
| Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
