| 起源の場所: | 寧波、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | RCAC25FS |
| 最小注文数量: | 8個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ペイパル、ウェスタンユニオン |
| 供給の能力: | 50000個/月 |
| 製品名: | 遠隔試験脈拍弁 | インレット接続: | フランジ |
|---|---|---|---|
| シリーズ: | fs | パイロットサイズ: | G1/8" |
| 接続口径: | 1 '' | 本体材質: | アルミニウム |
| 横隔膜材料: | NBR (標準),FKM (オプション) | 使用圧力: | 5〜125 psi |
| 応用: | 集じん器 | 参照番号: | RCAC25FS010、RCAC25FS020、RCAC25FS000 |
| ハイライト: | Goyen Pulse Valve RCAC25FS010,Goyen Pulse Valve RCAC25FS000,Goyen Pulse Valve RCAC25FS020 |
||

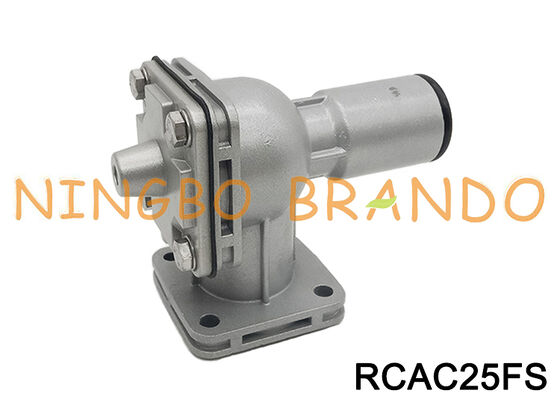

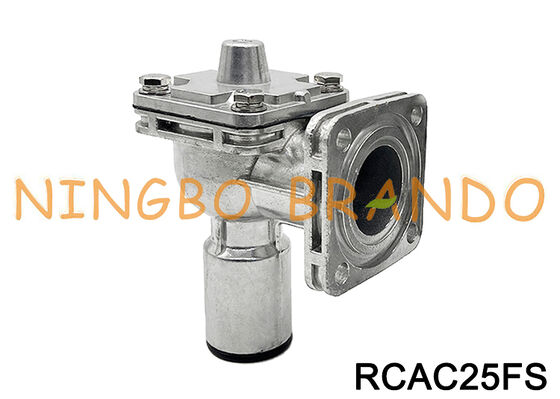

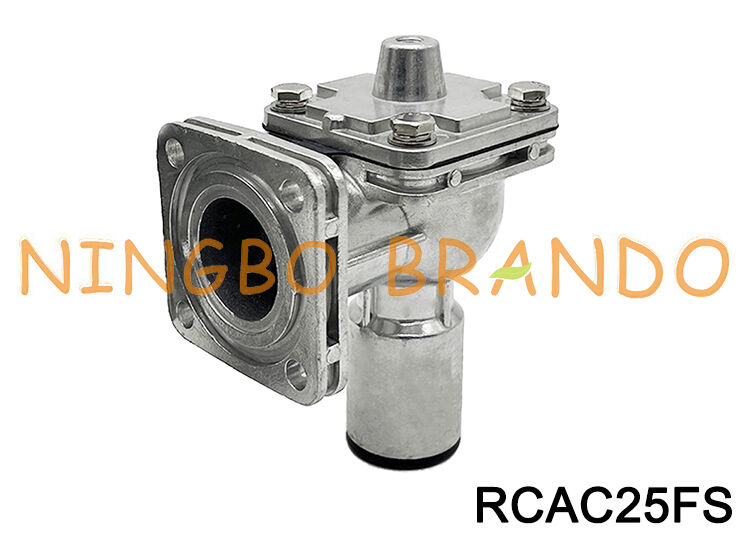

RCAC25FS GOYEN Type Right Angle Pluse Solenoid Diaphragh Valve 1''
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in dust collector, controlled by the electric signals from a pulse controller. Pulse valve can be integral pilot type or remote pilot type diaphragm valve, specially designed in dust collector systems in cement, ceramics, paint, feed thermal power plants, concrete plants, detergent, glass, iron and steel industry, etc.
Different pulse jet valve types:
1. Threaded Type
2. Dresser Nut Type
3. Manifold Mount Type
4. Flanged Type
5. Straight Through Type
Order Code:
Technical Data:
| Integral Pilot | CAC25FS | CA45FS |
| Remote Pilot | RCAC25FS | RCA45FS |
| Orifice Size (mm) | 25 | 45 |
| Inlet Size | 1'' Flanged | 1-1/2'' Flanged |
| Pilot Size | G1/8'' | G1/4'' |
| Diaphragm Number | 1 | 2 |
| Pressure Range | 5 to 125 psi | |
| Diaphragm Material | NBR (Standard), FKM (Optional) | |
| Body Material | Aluminum (diecast) | |
| Voltage | 24VAC, 110VAC, 220VAC, 24VDC | |
RCAC25FS Dimension:
Our Production:
Related Products:
|
|
|
|
| Pneumatic Fitting | Diaphragm | Remote Pilot Box | Pulse Controller |
