| 起源の場所: | 寧波、中国 |
| ブランド名: | BRANDO |
| 証明: | CE, ISO |
| モデル番号: | BA-ZT-25 |
| 最小注文数量: | 8個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 箱、カートン、パレット |
| 受渡し時間: | 4から7日 |
| 支払条件: | T/T、PayPal、Western Union |
| 供給の能力: | 10000個/月 |
| 製品名: | パルスバルブ | 接続口径: | 1 '' |
|---|---|---|---|
| 構造: | まっすぐ | 本体材質: | アルミニウム（ダイキャスト） |
| 横隔膜材料: | TPE、NBR、FKM | 使用圧力: | 0.3～0.8MPa |
| 電圧: | DC24V、AC110V、AC220V | ||
| ハイライト: | 1'' Pulse Jet Valve,Straight Through Pulse Jet Valve,Straight Through Diaphragm Valve |
||

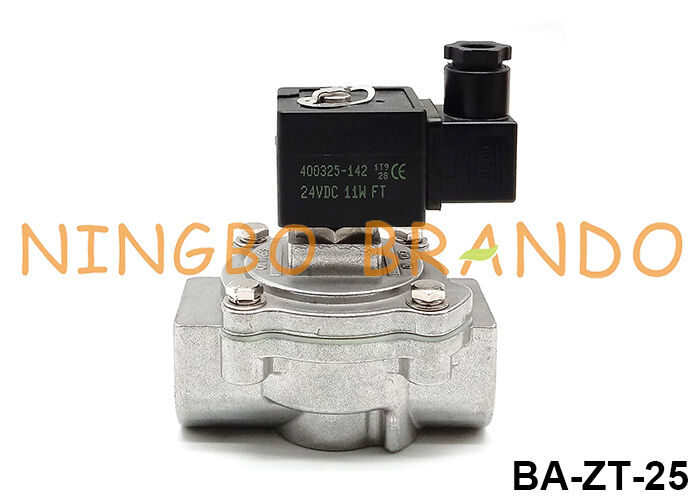

1'' Straight Through Pulse Jet Valve For Dust Collector 24V 110V 220V
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Right Angle Type
2. Fixed Nut Type
3. Embedded Type
4. Flanged Type
5. Straight Through Type

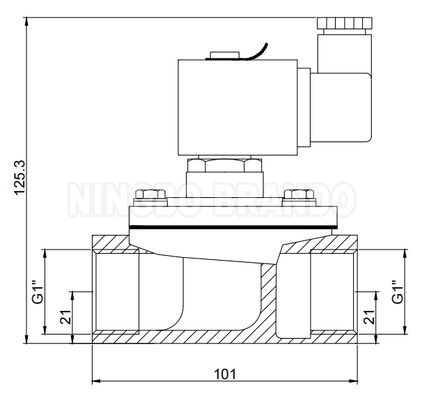

Main Dimension:
Technical Data:
Our Production:
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Diaphragm | Pulse Controller |
