| 起源の場所: | 中国 |
| ブランド名: | Brando |
| 証明: | None |
| モデル番号: | DB114 |
| 最小注文数量: | 1セット |
|---|---|
| パッケージの詳細: | ビニール袋、箱、カートン、パレット |
| 受渡し時間: | 4〜7 営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 1か月あたり100000セット |
| 製品名: | パルスバルブ膜 | 膜材料: | NBR、Viton |
|---|---|---|---|
| 1セット: | 1pc DB114のダイヤフラム、1pc DB16のダイヤフラム、2pcsばね | フィットパルスバルブモデル: | VNP214、VEM214、VNP314、VEM314、VNP414、VEM414、VNP614、VEM614、VNP714、VEM714 |
| ハイライト: | Mecair Diaphragm DB114/C,Mecair Membrane DB114/C,Mecair Pulse Valve Membrane |
||

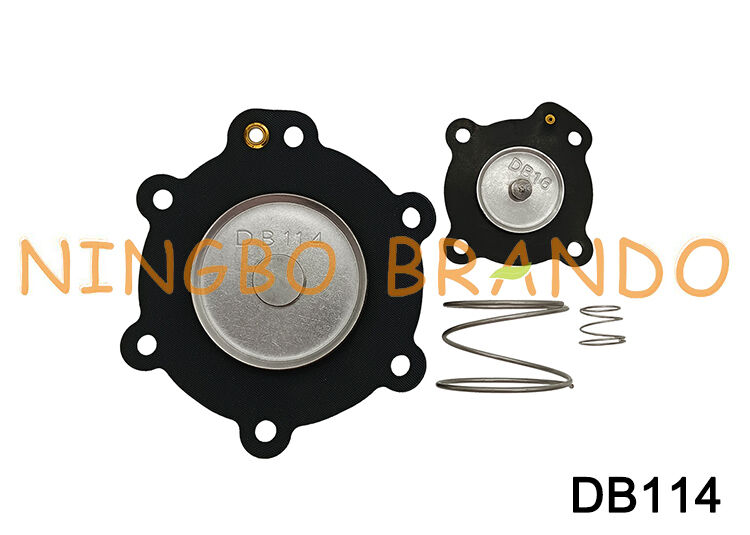

Mecair Type DB114 DB114/C Diaphragm For 1-1/2'' VNP214 VNP314 VNP414 Pulse Valve Replacement Kit
DB114 ( DB114/C ) Diaphragm ( Membrane ) for Mecair pulse valve VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
Ordering Code of Diaphragm For Mecair Pulse Valve:
|
Ordering code
|
Fitted valve code
|
Valve port size
|
Material
|
|
DB16/G
|
VNP206, VEM206, VNP306, VEM306
|
3/4''
|
NBR
|
|
DB18/G
|
VNP208, VEM208, VNP308, VEM308,
VNP408, VEM408
|
1''
|
NBR
|
|
DB18M
|
VNP608, VEM608, VNP708, VEM708
|
1'', 1-1/2''
|
NBR
|
|
DB112/G
|
VNP212, VEM212, VNP312, VEM312,
VNP412, VEM412
|
1-1/2''
|
NBR
|
|
DB114/C
|
VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 |
1-1/2''
|
NBR
|
|
DB116/C
|
VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 |
2''
|
NBR
|
|
DB120/C
|
VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 |
2-1/2'', 3''
|
NBR
|
|
Tips: EPDM, FKM all available.
|
|||
Dimension of DB114 Diaphragm:
Video of DB114 Diaphragm:
Pictures of Pulse Valve Membrane Production:
More Products For Mecair Pulse Valve for you to choose:
|
|
|
|
| Valve Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
