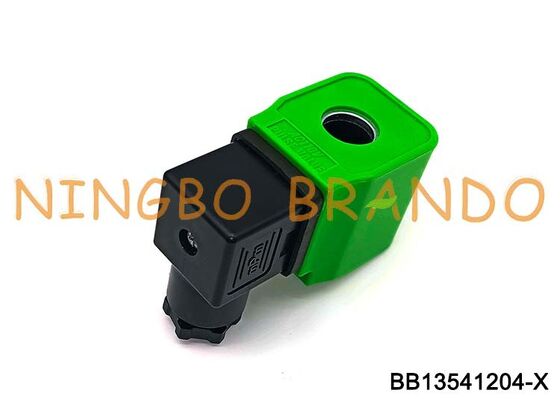

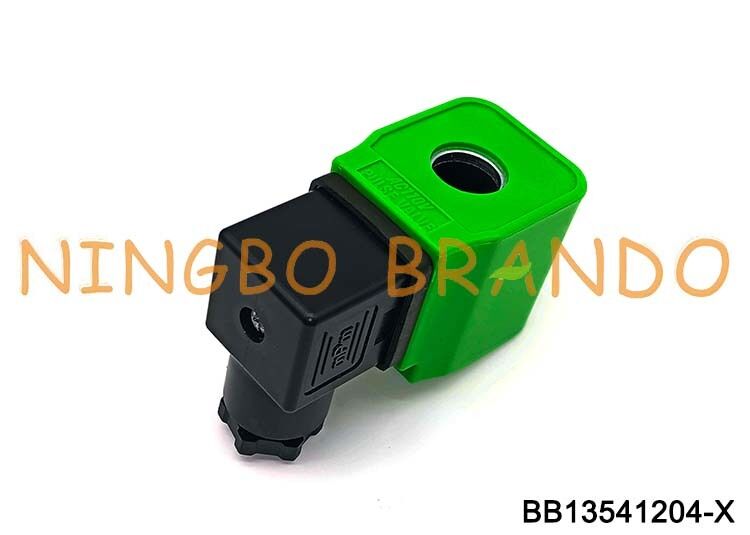

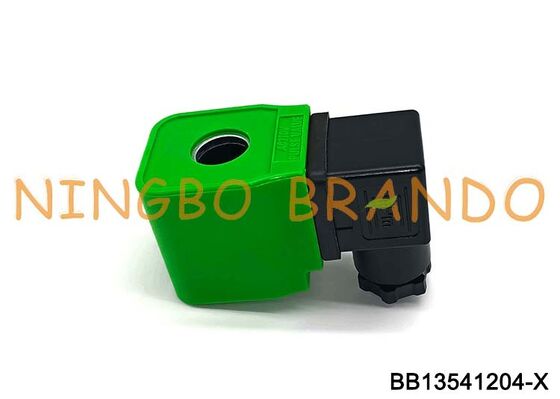

BFEC DMF Series Dust Collector Pulse Jet Valve Solenoid Coil 110VAC AC110V 110V

BFEC DMF Series Dust Collector Pulse Jet Valve Solenoid Coil 110VAC AC110V 110V

This is a solenoid coil for BFEC pulse valve DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-Y-102S; Voltage: 24VDC, 110VAC, 220VAC; Power: 20W, 25W; Connector: DIN 43650 Form A.

Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve. The fast opening and closing of the valve is of great importance for effective cleaning of filters and economical consumption of compressed air.

Dimension & Data of BFEC Pulse Valve Coil & Armature:

Video of BFEC Pulse Valve Solenoid Coil:

BRANDO Solenoid Valve Coils Production Video:

More BFEC Pulse Valves for you to choose:

Right Angle Type	Quick Mount Type	Straight Through Type	Submerged Type
Diaphragm	Solenoid Coil	Solenoid Armature	Pulse Controller
