| 起源の場所: | 中国 |
| ブランド名: | Ningbo BRANDO |
| 証明: | None |
| モデル番号: | MD03-90M |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 7営業日 |
| 支払条件: | T/T、ウェスタンユニオン、ペイパル |
| 供給の能力: | 100000個/月 |
| 製品名: | パルスバルブダイヤフラム | ダイヤフラム材質: | NBR |
|---|---|---|---|
| シート素材: | ナイロン | 取り付けられたパルスバルブポート: | 3 1/2」 |
| フィットパルスバルブモデル: | TH-5490-M、TH-4490-M | 1セット: | 1pc大きいダイヤフラム、1pc小さいダイヤフラム、2pcsばね |
| ハイライト: | Taeha Diaphragm Kit MD03-90M,Taeha Membrane MD03-90M,TAEHA Pulse Jet Valve Membrane |
||

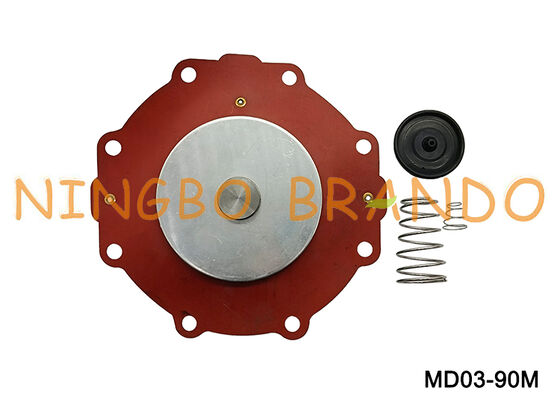

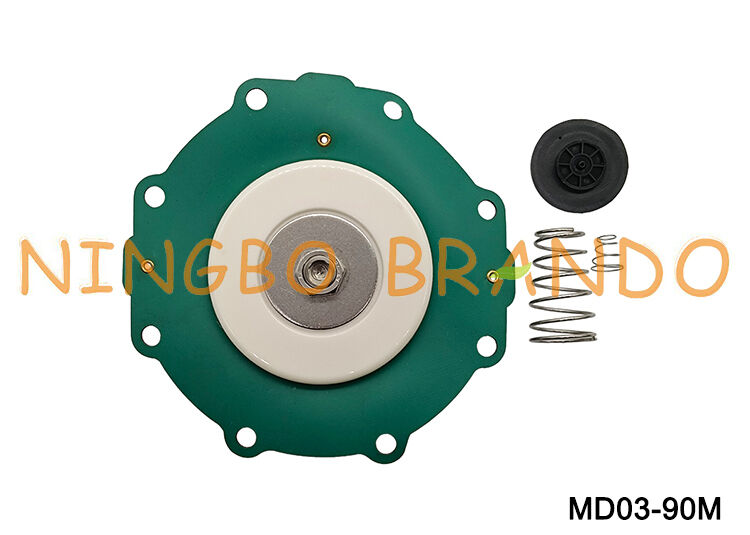

MD03-90M Diaphragm Repair Kit For 3-1/2'' TAEHA TH-5490-M TH-4490-M
MD03-75, MD03-75M Diaphragm (Membrane) for Taeha pulse valve TH-5474-B, TH-4475-B, TH-5475-M, TH-4475-M; The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Ordering Code of Diaphragm For Taeha Pulse Valve:
|
BRANDO Model
|
Diaphragm Model
|
Pulse Valve
Port Size
|
Pulse Valve
Model No
|
Diaphragm
Color
|
Diaphragm
Material
|
|
DH20
|
MD01-20
MD02-20
|
3/4''
|
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C
|
Red & Green
|
NBR
|
|
DH25
|
MD01-25
MD02-25
|
1''
|
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
|
||
|
MD01-25M
|
TH-5825-M
|
||||
|
DH30
|
MD01-30
MD02-30
MD03-30
|
1 1/4''
|
TH-5830-B
TH-5430-B
TH-4830-B
TH-4430-B
|
||
|
MD03-30M
|
TH-5430-M
TH-4430-M
|
||||
|
DH40
|
MD01-40
MD02-40
MD03-40
|
1 1/2''
|
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
|
||
|
DH40M
|
MD03-40M
|
1 1/2''
|
TH-5440-M
TH-4440-M
|
||
|
DH50
|
MD03-50
|
2''
|
TH-5450-B
TH-4450-B
|
||
|
DH50M
|
MD03-50M
|
2''
|
TH-5450-M
TH-4450-M
|
||
|
DH60
|
MD03-60
MD04-60
|
2 1/2''
|
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S
|
||
|
DH75
|
MD03-75
|
3''
|
TH-5475-B
TH-4475-B
|
||
|
MD03-75M
|
3''
|
TH-5475-M
TH-4475-M
|
|||
|
DH90M
|
MD03-90M
|
3 1/2''
|
TH-5490-M
TH-4490-M
|
||
|
DH100M
|
MD03-00M
|
4''
|
TH-5400-M
TH-4400-M
|
Dimension of MD03-75, MD03-75M Diaphragm:
 |
|
| Main Diaphragm | Secondary Diaphragm |
Pulse Valve Diaphragm Production Pictures:
Related Products:
|
|
|
|
| Solenoid Coil | Solenoid Armature | Pulse Valve | Pulse Controller |
