| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | 2W160-10 |
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100000個/月 |
| 接続口径: | 3/8" | オリフィスサイズ: | 10mm |
|---|---|---|---|
| アクション: | ダイレクトリフティングダイヤフラム | メディア: | 水 空気 ガス |
| 本体材質: | 真鍮 | ダイヤフラム材質: | NBR、FKM、EPDM |
| 圧力範囲: | 0から1つのMPa | 電圧: | 12VDC、24VDC、24VAC、110VAC、220VAC |
| REF. NUMBER: | ユニ-D型 UW-10 | ||
| ハイライト: | 2W160-10 Normal Closed Solenoid Valve,2W160-10 Water Solenoid Valve,UW-10 Brass Solenoid Valve |
||

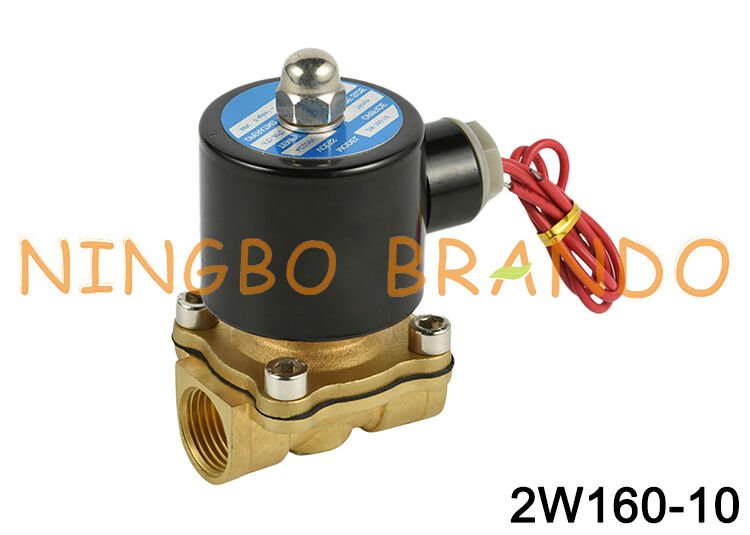

3/8'' 2W160-10 Brass 2-Way Normally Closed Solenoid Valve
Product Features:
1. Working Medium: Water, Air, Oil, Gas, etc.
2. Working Meidum Temperature Range: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃
3. Working Pressure Range: 0 to 1 MPa
4. Function, 2 Way Normally Closed, 2 Way Normally Open
5. Operation: Direct Lifting Diaphragm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, FKM, EPDM
8. Port Size: 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
9. Thread Type: G, NPT
10. Supply Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of 2W & 2S Solenoid Valve:
|
2W Series
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
2S Series
|
2S025-08
|
2S040-10
|
2S160-15
|
2S200-20
|
2S250-25
|
2S350-35
|
2S400-40
|
2S500-50
|
|
Orifice Size
|
2.5
|
4
|
15
|
20
|
25
|
35
|
40
|
50
|
|
Port Size
|
1/4''
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Gas, Oil
|
|||||||
|
Action
|
Direct Acting
|
Semi-Direct Diaphragm Operated
|
||||||
|
Function
|
2 Way, Normally Closed
|
|||||||
|
Fluid Viscosity
|
20 CST below
|
|||||||
|
Pressure
Range
|
0 to 1.0 Mpa
|
|||||||
|
Temp. Range
|
-5 to +85℃
|
|||||||
Main dimension of 2W & 2S Series Solenoid Valves:
|
2S Series
|
2W Series
|
A
|
B
|
C
|
D
|
E
|
|
2S025-06
|
2W025-06
|
64.5
|
30
|
75
|
43
|
1/8''
|
|
2S025-08
|
2W025-08
|
64.5
|
30
|
75
|
43
|
1/4''
|
|
2S040-10
|
2W040-10
|
70.6
|
32
|
82.4
|
53
|
3/8''
|
|
2S160-10
|
2W160-10
|
101.5
|
57
|
117
|
69
|
3/8''
|
|
2S160-15
|
2W160-15
|
101.5
|
57
|
117
|
69
|
1/2''
|
|
2S200-20
|
2W200-20
|
107
|
57
|
123.5
|
73
|
3/4''
|
|
2S250-25
|
2W250-25
|
111.5
|
73.5
|
134.5
|
99
|
1''
|
|
2S350-35
|
2W350-35
|
142
|
95
|
172
|
123
|
1-1/4''
|
|
2S400-40
|
2W400-40
|
142
|
95
|
172
|
123
|
1-1/2''
|
|
2S500-50
|
2W500-50
|
172
|
123
|
209
|
168
|
2''
|
