| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | PU225A-06 |
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100000個/月 |
| 接続口径: | 3/4インチ | オリフィスサイズ: | 25mm |
|---|---|---|---|
| 使用圧力範囲: | 0.05〜1MPa | 関数: | 閉鎖した2方法普通 |
| 本体材質: | 真鍮 | ダイヤフラム材質: | NBR、FKM、EPDM |
| 電圧: | 12VDC、24VDC、24VAC、110VAC、220VAC | 手術: | デアフラグマ・パイロットの操作 |
| ハイライト: | SHAKO Solenoid valve PU225A-06,Shako 2/2 Way Solenoid Valve PU225A Series 3/4'',SHAKO PU225A-06 AC220V |
||

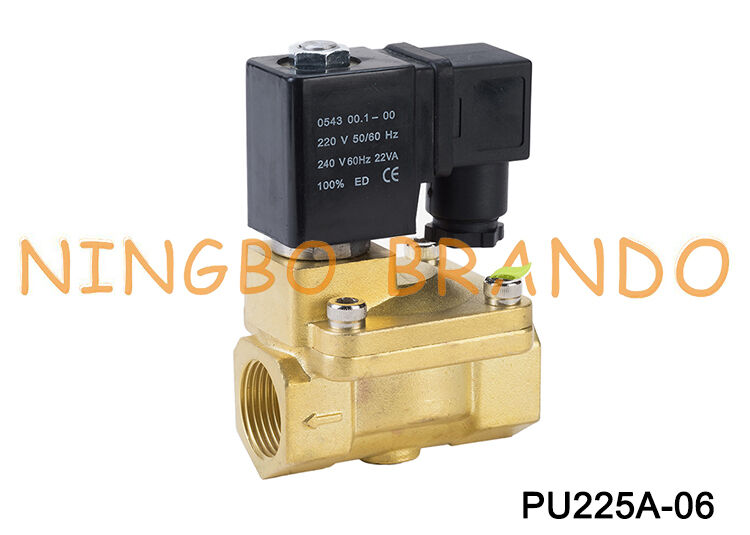

SHAKO Type Brass valve PU225A-06 2/2 Normally Closed Solenoid Valve PU225A Series
This is PU225A-06 solenoid valve, 3/4'' port, 25mm orifice, 0.5 to 10 bar, diaphragm pilot operated, 2 way normally closed, brass body, NBR standard diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.
Product Features:
1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Pressure: 0.5 to 10 bar
3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
5. Orifice Size: 13mm, 25mm, 38mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data:
|
Model No
|
PU225A-03
|
PU225A-04
|
PU225A-06
|
PU225A-08
|
PU225A-12
|
PU225A-14
|
PU225A-20
|
|
Orifice Size
|
13mm
|
25mm
|
38mm
|
50mm
|
|||
|
Port Size
|
3/8''
|
1/2''
|
3/4''
|
1''
|
1-1/4''
|
1-1/2''
|
2''
|
|
Medium
|
Water, Air, Light oil, Gas, Liquid, etc
|
||||||
|
Operation
|
Diaphragm Pilot Operated
|
||||||
|
Function
|
2 Way Normally Closed
|
||||||
|
Body Material
|
Brass
|
||||||
|
Diaphragm Material
|
NBR (Standard), EPDM, FKM (Optional)
|
||||||
|
Working Pressure
|
0.5 to 10 bar
|
||||||
|
Working Temperature
|
NBR: -5 to +80ºC
EPDM: -5 to +120ºC FKM: -10 to +150ºC |
||||||
|
Voltage
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
||||||
Main Dimension:
|
Model Number
|
Port
|
A
|
B
|
C
|
|
PU225A-03
|
3/8''
|
67.5
|
106
|
48
|
|
PU225A-04
|
1/2''
|
67.5
|
106
|
48
|
|
PU225A-06
|
3/4''
|
75
|
112
|
58
|
|
PU225A-08
|
1''
|
96
|
124.5
|
70
|
|
PU225A-12
|
1-1/4''
|
130
|
139
|
97
|
|
PU225A-14
|
1-1/2''
|
130
|
139
|
97
|
|
PU225A-20
|
2''
|
161
|
160.5
|
112
|
