| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | 4V310-08 |
| 最小注文数量: | 300個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100000個/月 |
| 接続口径: | In=Out=Exhaust=1/4」 | 圧力範囲: | 0.15から0.8 MPa |
|---|---|---|---|
| 本体材質: | アルミニウム合金 | バルブの種類: | 5方法2位置 |
| 最大圧力抵抗: | 1.2Mpa | 流体: | 空気 |
| 電圧: | 12VDC、24VDC、24VAC、110VAC、220VAC | ||
| ハイライト: | Pneumatic Solenoid Air Valve 4V310-08,Airtac 4V310-08 Solenoid Air Valve,Solenoid Valve 4V310-08 |
||

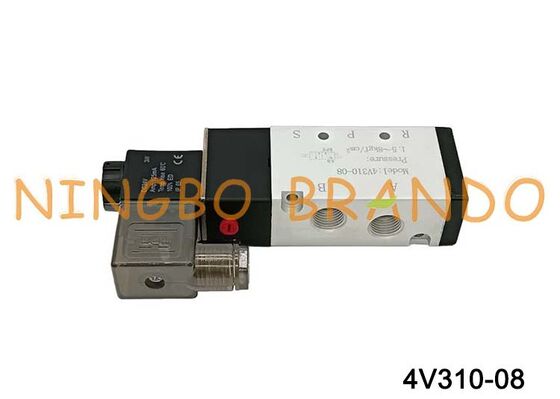

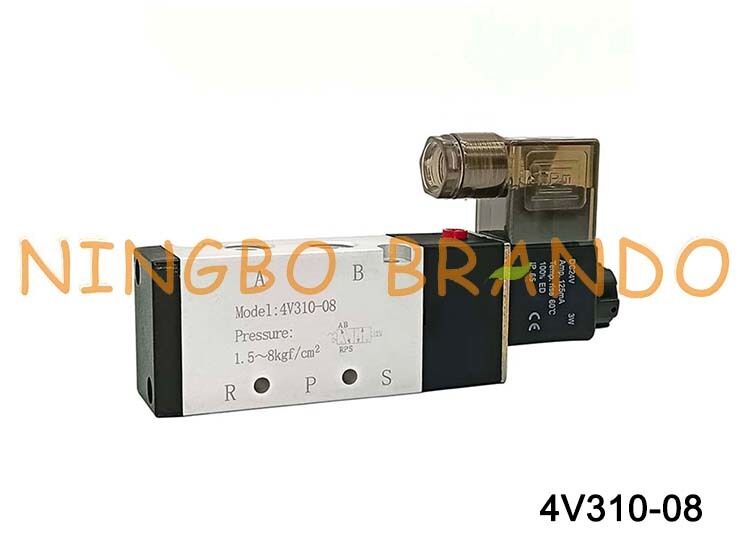

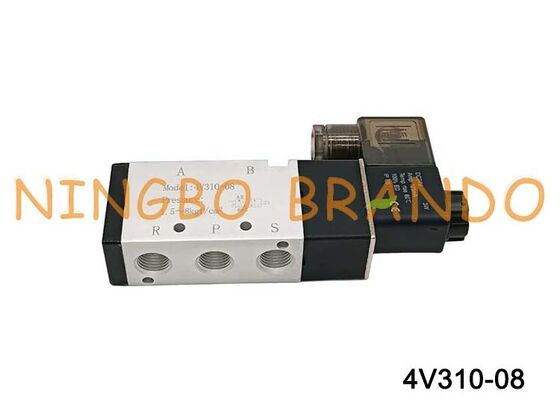

Airtac Type 4V310-08 Solenoid Air Valve 5 Way 2 Position 4V300 Series
Pneumatic solenoid valves generally have a spool design. They consist of an aluminum body with a cylindrical hole. The different ports of the valve connect to the cylinder. A sliding spool in the cylinder has several seals along its length. By sliding the spool back and forth through the cylinder, different ports can be connected or closed off. Pneumatic solenoid valves are appointed with two numbers. The first number shows how many ports the valve has, and the second number is the amount of states. For example, a 2/2-way valve has two ports (in/out) and two states (open/closed). A 5/2-way valve has five ports and two states. Directional valves usually have two, three, or five ports.
Technical Data of 4V300 Series Solenoid Valve:
|
Model
|
4V310-08
|
4V320-08
|
4V330C-08
4V330E-08
4V330P-08
|
4V310-10
|
4V320-10
|
4V330C-10
4V330E-10
4V330P-10
|
|
Fluid
|
Air (to be filtered by 40 μm filter element)
|
|||||
|
Acting
|
internal pilot or external pilot
|
|||||
|
Port Size
|
in=out=exhaust=1/4''
|
in=out=3/8'', exhaust=1/4''
|
||||
|
Orifice Size
|
4V310-10, 4V320-10: 28.0mm² (Cv=1.65)
4V330C-10: 21.3mm² (Cv=1.25)
|
|||||
|
Vlave Type
|
5 way 2 position
|
5 way 3 postion
|
5 way 2 position
|
5 way 3 position
|
||
|
Operating Pressure
|
0.15 to 0.8 MPa (21 to 114 psi)
|
|||||
|
Proof Pressure
|
1.2MPa (175psi)
|
|||||
|
Temperature
|
-20 to +70℃
|
|||||
|
Body Material
|
Aluminum Alloy
|
|||||
|
Max Frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
||
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|||||
Main Dimension of 4V310-08 Solenoid Valve:
