| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | FDF6A |
| 最小注文数量: | 5個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100,000 PCS/月 |
| 製品名: | 冷凍の電磁弁 | トューブオード (mm): | 7.94 |
|---|---|---|---|
| チューブ外径(インチ): | 5/16" | オリフィスサイズ: | 5.8mm |
| ワイヤリングタイプ: | 飛行鉛 | 作動: | パイロット操作 |
| 電圧: | DC24V、AC24V、AC110V、AC220V | 応用: | エアコン,ヒートポンプ,アイスメーカー,冷蔵庫,冷蔵庫など |
| 最高使用圧力: | 4.5 MPa | ||
| ハイライト: | FDF6A refrigeration solenoid valve,FDF6A Two-Way Solenoid Valve,FDF6A58 Refrigeration Solenoid Valve |
||

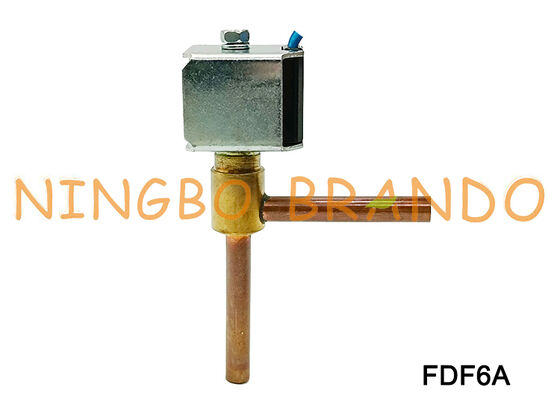

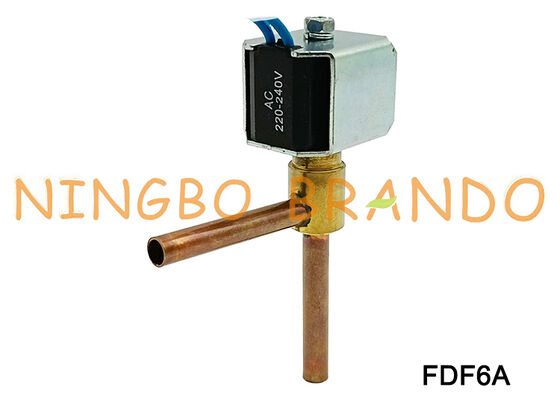

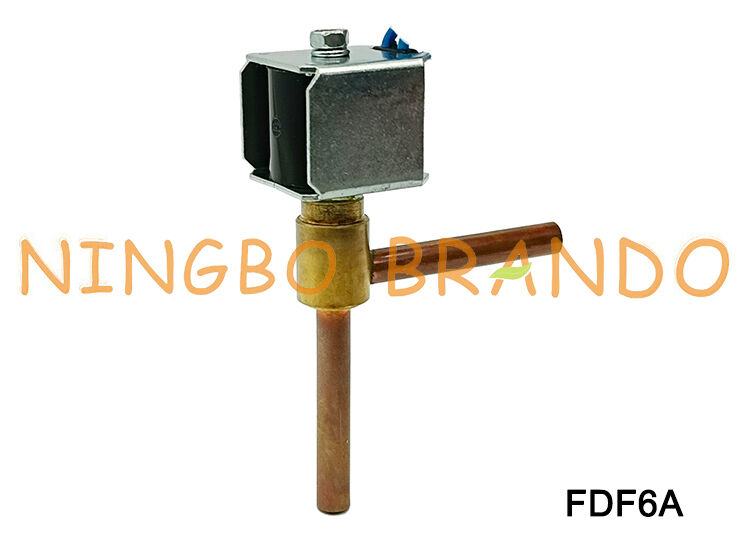

FDF6A FDF6A58 Sanhua Type Solenoid Valve FDF NC Series Valve For Heat Pump
Product Features of FDF series solenoid valves:
1. Direct operated or pilot operated, 2 way normally closed solenoid valve. Normally open type is available.
2. For use with non-corrosive refrigerant.
3. Compactly designed for use in small appliances produced in quantity such as room air conditioners, dehumidifiers, heat pumps and ice making machines.
4. Various piping configuration available.
Technical Data of FDF NC Series Solenoid Valve:
|
Model
|
FDF2A94
|
FDF2.5A06
|
FDF3A08
|
FDF4A10
|
FDF6A58
|
FDF8A21
|
FDF11A05
|
FDF13A07
|
|
Actuation
|
Direct
|
Pilot
|
||||||
|
Kv(m³/h)
|
0.08
|
0.2
|
0.26
|
0.3
|
0.56
|
1.29
|
2.4
|
3.44
|
|
Max. OPD
(MPa)
|
3.4
|
3.4
|
3.4
|
3.4
|
3.4
|
2.8
|
2.8
|
2.8
|
|
Min. OPD (MPa)
|
0
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.02
|
0.02
|
|
MOP (MPa)
|
4.5
|
|||||||
|
Normal Position
|
NC
|
|||||||
|
Tube OD (inch)
|
1/4''
|
1/4''
|
5/16''
|
1/4''
|
5/16''
|
3/8''
|
1/2''
|
5/8''
|
|
Tube OD (mm)
|
6.35
|
6.34
|
7.94
|
6.35
|
7.94
|
9.52
|
12.7
|
15.88
|
Main Dimension of FDF NC Series Solenoid Valve:
|
Model
|
Measurement (mm)
|
||
|
L
|
L1
|
L2
|
|
|
FDF 2A 94
|
67
|
32
|
34
|
|
FDF 2.5A 08
|
85
|
38
|
38
|
|
FDF 3A 08
|
81
|
35
|
36
|
|
FDF 4A 10
|
81
|
35
|
38
|
|
FDF 6A 58
|
81
|
35
|
36
|
|
FDF 8A 21
|
114
|
62
|
62
|
|
FDF 11A 16
|
113
|
61
|
61
|
|
FDF 13A 12
|
114
|
62
|
62
|
