| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | NRV,NRVH |
| 最小注文数量: | 5個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100,000 PCS/月 |
| 製品名: | 冷凍の逆止弁 | 接続口径: | 1/4' 3/8' 1/2' 5/8' 3/4' 7/8' |
|---|---|---|---|
| 繋がり: | 直ぐに ソルダー | メディア温度範囲: | 50℃～+140℃ |
| 最高使用圧力: | 46バー | 適当な冷却剤: | HCFC,HCFC,HC |
| ハイライト: | Danfoss nrv check valve,NRV refrigeration check valves,Check valve danfoss nrv |
||

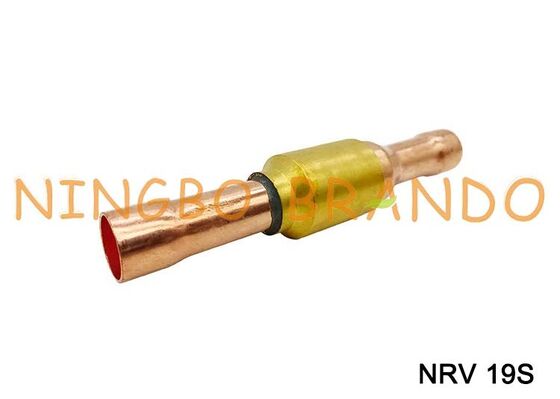

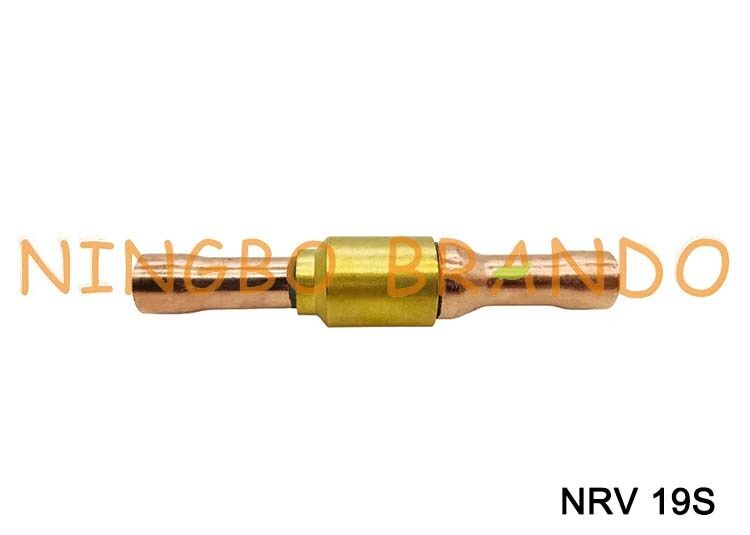

Danfoss Type NRV refrigeration check valves for Air conditioning 1/4'' 3/8'' 1/2'' 5/8'' 3/4'' 7/8''
NRV and NRVH refrigeration check valves can be used in liquid, suction and hot gas lines in refrigeration and air conditioning plant with HCFC. HFC and HC flammable refrigerants. The valves ensure the correct flow direction and prevent back-condensation from a warm part of the system to the cold evaporator. A built-in damping piston makes the valves suitable for installation in lines where pulsation can occur. e. g. in the discharge line from the compressor.
Technical Data of NRV, NRVH Straightway Solder Check Valve:
| Model | Connection Type | Connection Size |
Pressure drop
across valve
|
Kv value
|
Cv value
|
Code no | ||
| inch | mm | bar | psi |
m3 /h
|
gal/min
|
|||
| NVR 6s | Straight-way, Solder | 1/4'' | - | 0.07 | 1.01 | 0.56 | 0.65 | 020-1010 |
| 6 | 0.07 | 1.01 | 0.56 | 0.65 | 020-1014 | |||
| NVR 6s | 1/4'' | - | 0.07 | 1.01 | 0.56 | 0.65 | 020-1057 | |
| 6 | 0.07 | 1.01 | 0.56 | 0.65 | 020-1050 | |||
| NVRH 6s | 3/8'' | - | 0.3 | 4.35 | 0.56 | 0.65 | 020-1069 | |
| 10 | 0.3 | 4.35 | 0.56 | 0.65 | 020-1062 | |||
| NVR 10s | 3/8'' | - | 0.07 | 1.01 | 1.2 | 1.39 | 020-1011 | |
| 10 | 0.07 | 1.01 | 1.2 | 1.39 | 020-1015 | |||
| NVRH 10s | 1/2'' | - | 0.3 | 4.35 | 1.2 | 1.39 | 020-1046 | |
| 12 | 0.3 | 4.35 | 1.2 | 1.39 | 020-1036 | |||
| NVR 10s | 1/2'' | - | 0.07 | 1.01 | 1.2 | 1.39 | 020-1058 | |
| 12 | 0.07 | 1.01 | 1.2 | 1.39 | 020-1051 | |||
| NVRH 10s | 1/2'' | - | 0.3 | 4.35 | 1.2 | 1.39 | 020-1070 | |
| 12 | 0.3 | 4.35 | 1.2 | 1.39 | 020-1063 | |||
| NVR 12s | 1/2'' | - | 0.05 | 0.72 | 2.05 | 2.37 | 020-1012 | |
| 12 | 0.05 | 0.72 | 2.05 | 2.37 | 020-1016 | |||
| NVRH 12s | 1/2'' | - | 0.3 | 4.35 | 2.05 | 2.37 | 020-1039 | |
| 12 | 0.3 | 4.35 | 2.05 | 2.37 | 020-1037 | |||
| NVR 12s | 5/8'' | 16 | 0.05 | 0.72 | 2.05 | 2.37 | 020-1052 | |
| NVRH 12s | 5/8'' | 16 | 0.3 | 4.35 | 2.05 | 2.37 | 020-1064 | |
| NVR 16s | 5/8'' | 16 | 0.05 | 0.72 | 3.6 | 4.16 | 020-1018 | |
| NVRH 16s | 5/8'' | 16 | 0.3 | 4.35 | 3.6 | 4.16 | 020-1038 | |
| NVR 16s | - | 18 | 0.05 | 0.72 | 3.6 | 4.16 | 020-1053 | |
| NVRH 16s | - | 18 | 0.3 | 4.35 | 3.6 | 4.16 | 020-1065 | |
| NVR 16s | 3/4'' | 19 | 0.05 | 0.72 | 3.6 | 4.16 | 020-1059 | |
| NVRH 16s | 3/4'' | 19 | 0.3 | 4.35 | 3.6 | 4.16 | 020-1071 | |
| NVR 19s | - | 18 | 0.05 | 0.72 | 5.5 | 6.36 | 020-1017 | |
| NVRH 19s | - | 18 | 0.3 | 4.35 | 5.5 | 6.36 | 020-1008 | |
| NVR 19s | 5/8'' | 19 | 0.05 | 0.72 | 5.5 | 6.36 | 020-1019 | |
| NVRH 19s | 5/8'' | 19 | 0.3 | 4.35 | 5.5 | 6.36 | 020-1023 | |
| NVR 19s | 7/8'' | 22 | 0.05 | 0.72 | 5.5 | 6.36 | 020-1054 | |
| NVRH 19s | 7/8'' | 22 | 0.3 | 4.35 | 5.5 | 6.36 | 020-1066 | |
Main Dimension of NRV, NRVH Straightway Solder Check Valve:
| Model | Connection Size | L | L2 | φD | ||
| Inch | mm | mm | mm | mm | ||
| NRV 6s | NRVH 6s | 1/4'' | 6 | 92 | 7 | 18 |
| NRV 6s | NRVH 6s | 3/8'' | 10 | 95 | 9 | 18 |
| NRV 10s | NRVH 10s | 3/8'' | 10 | 109 | 9 | 18 |
| NRV 10s | NRVH 10s | 1/2'' | 12 | 109 | 10 | 18 |
| NRV 12s | NRVH 12s | 1/2'' | 12 | 131 | 10 | 22 |
| NRV 12s | NRVH 12s | 5/8'' | 16 | 131 | 12 | 22 |
| NRV 16s | NRVH 16s | 5/8'' | 16 | 139 | 12 | 28 |
| NRV 16s | NRVH 16s | - | 18 | 139 | 14 | 28 |
| NRV 19s | NRVH 19s | - | 18 | 165 | 14 | 34 |
| NRV 16s | NRVH 16s | 3/4'' | 19 | 139 | 14 | 28 |
| NRV 19s | NRVH 19s | 3/4'' | 19 | 165 | 14 | 34 |
| NRV 19s | NRVH 19s | 7/8'' | 22 | 165 | 17 | 34 |
