| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | AEL 0.5 |
| 最小注文数量: | 5個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100,000 PCS/月 |
| 製品名: | 自動拡張弁 | 注文コード: | AEL-222200、AEL-222210 |
|---|---|---|---|
| 接続口径: | 1/4'入口 3/8'出口 | オリフィスサイズ: | 0.7mm |
| 配管接続: | 半田 | 熱電荷: | CFC,HCFC,HFCは全て,アンモニアにはなりません. |
| 出荷時設定: | 22バー | 応用: | エアコン,エアドライヤー,デハウミディファイヤー,ウォータークーラー,アイスメーカーなど |
| ハイライト: | Automatic expansion valve Honey well AEL- 0.5,AEL 0.5 Automatic Expansion Valve,Honey well expansion valve AEL-222210 |
||

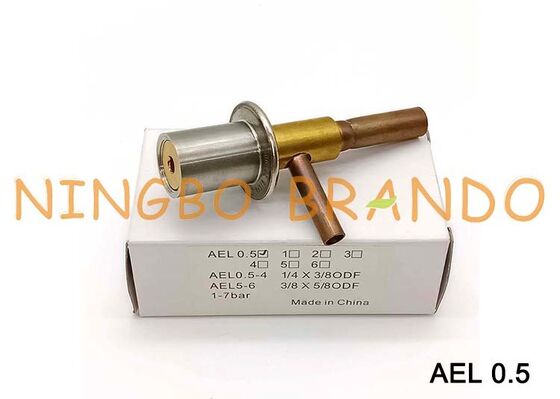

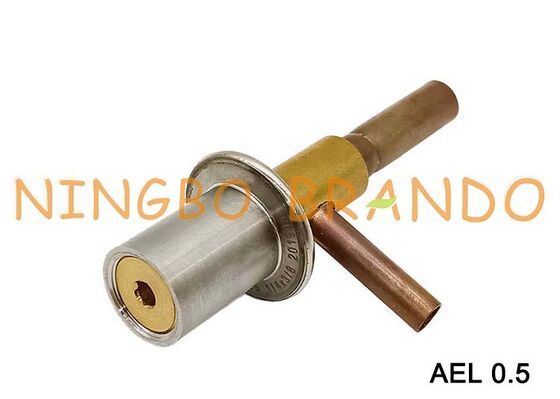

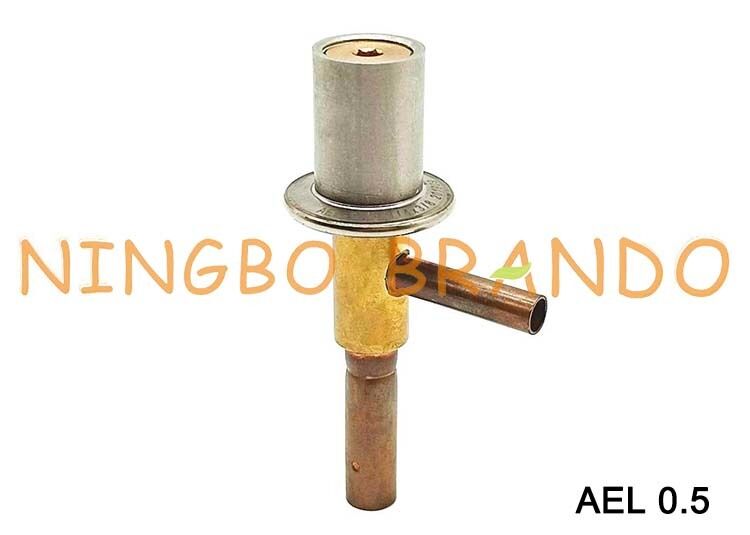

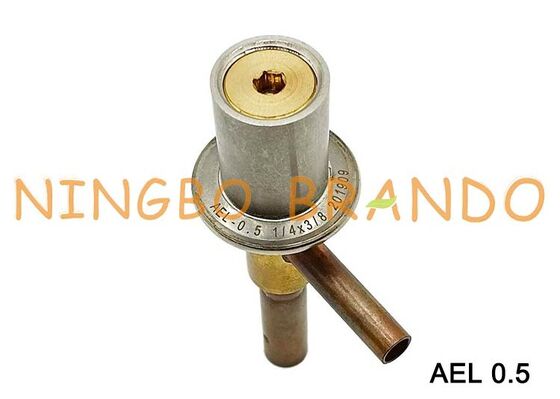

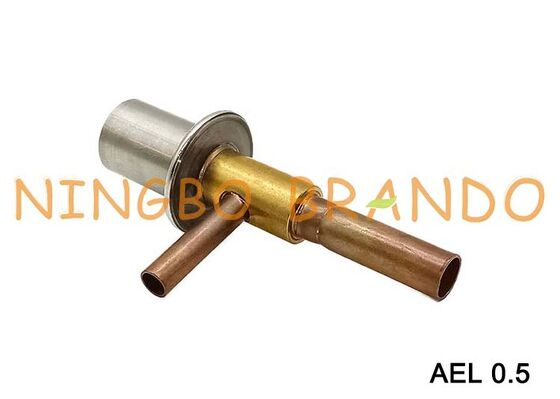

Automatic expansion valve Honey well Type AEL- 0.5 AEL-222200 AEL-222210
Series AEL Automatic Expansion Valves with fixed orifice and adjustable evaporating pressure; Automatic expansion valves (constant pressure valves) series AEL are used in general refrigeration and for original equipment. For plants with single injected evaporators and without a distributor, such as air conditioners, dehumidifiers, air driers, water coolers or ice-making machines.
1. Smallest dimensions
2. High performance
3. Hermetic construction
4. Adjustable evaporating pressure setting
5. Extreme durable due to stainless steel head and stainless steel diaphragm welded using protective gas
6. Maximum pressure PS 25.5 bar
7. Maximum test pressure PF 28 bar
Ordering Code of AEL Series Automatic Expansion Valve:
|
Model
|
Inlet (ODF)
|
Outlet (ODF)
|
Orifice Size
|
Type
|
|
AEL0.5
|
6mm
|
10mm
|
0.7
|
AEL-222200
|
|
1/4''
|
3/8''
|
0.7
|
AEL-222210
|
|
|
AEL 1.0
|
6mm
|
10mm
|
1.0
|
AEL-222201
|
|
1/4''
|
3/8''
|
1.0
|
AEL-222211
|
|
|
AEL 2.0
|
6mm
|
10mm
|
2.0
|
AEL-222202
|
|
1/4''
|
3/8''
|
2.0
|
AEL-222212
|
|
|
AEL 3.0
|
6mm
|
10mm
|
3.0
|
AEL-222203
|
|
1/4''
|
3/8''
|
3.0
|
AEL-222213
|
|
|
AEL 4.0
|
6mm
|
10mm
|
3.5
|
AEL-222204
|
|
1/4''
|
3/8''
|
3.5
|
AEL-222214
|
|
|
AEL 5
|
3/8''
|
5/8''
|
4.75
|
AEL-222285
|
|
AEL 6
|
10mm
|
16mm
|
5
|
AEL-222205
|
|
3/8''
|
5/8''
|
5
|
AEL-222215
|
Dimenison of AEL Series Automatic Expansion Valve:
|
Model
|
Valve Size
|
Connection
|
Dimension
|
||||
|
Inlet (A)
|
Outlet (B)
|
C
|
D
|
E
|
F
|
||
|
AEL
|
0.5
1.0
2.0
3.0
4.0
|
6mm ODF
|
10mm ODF
|
58
|
36
|
106
|
54
|
|
1/4'' ODF
|
3/8'' ODF
|
||||||
|
5.0
6.0
|
10mm ODF
|
16mm ODF
|
64
|
47
|
122
|
69
|
|
|
3/8'' ODF
|
5/8'' ODF
|
||||||
Video of AEL 0.5 Automatic Expansion Valve:
Capacities of AEL Series Automatic Expansion Valve:
|
Type
|
Valve Size
|
Orifice Size
|
Nominal Capacity (kW)
|
|||
|
R22
|
R134a
|
R404A
|
R507A
|
|||
|
AEL
|
0.5
|
0.7
|
1.4
|
1.0
|
0.97
|
0.98
|
|
1.0
|
1.0
|
2.0
|
1.4
|
1.4
|
1.4
|
|
|
2.0
|
2.0
|
4.0
|
2.9
|
2.8
|
2.9
|
|
|
3.0
|
3.0
|
9.3
|
6.6
|
6.5
|
6.6
|
|
|
4.0
|
3.5
|
12.2
|
8.7
|
8.6
|
8.7
|
|
|
5.0
|
4.75
|
4.75
|
15.9
|
15.8
|
15.9
|
|
|
6.0
|
5.0
|
29.1
|
2.0.0
|
20.5
|
20.7
|
|
