| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | DIN 43650A-BRK |
| 最小注文数量: | 5個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100,000 PCS/月 |
| 製品名: | タイプ 2508 ケーブル プラグ | ケーブル径: | 6～7mm |
|---|---|---|---|
| 距離: | 18mm | 喧騒のタイプ: | DIN 43650フォームa |
| 保護クラス: | IP65 | Nomicalの流れ: | 10A |
| 接触抵抗: | ≤5mΩ | 最高のコンダクター セクション: | 3x1.5mmの² |
| 極形式: | 2+1GND、3+1GND | 動作電圧: | AC380V、DC300V |
| ハイライト: | Burkert 2508 Cable Plug Connector,DIN 43650 A Solenoid Valve Connector,Burkert Type 2508 connector |
||

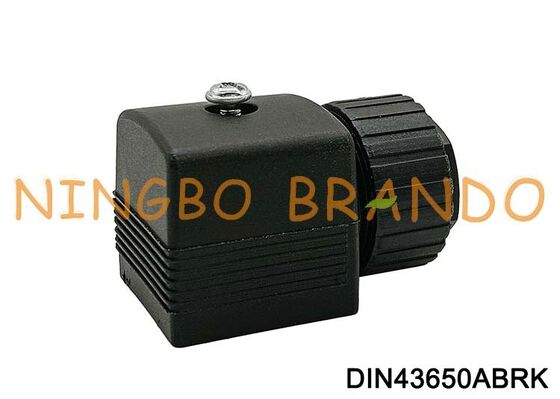

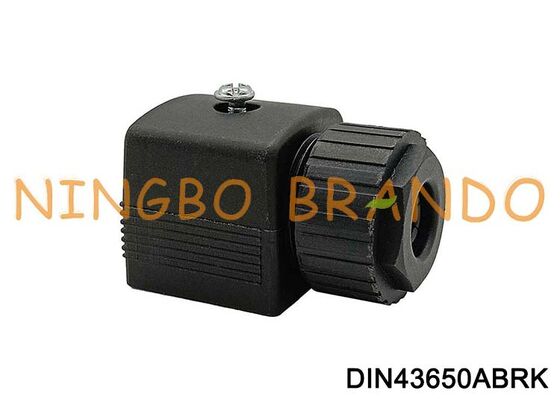

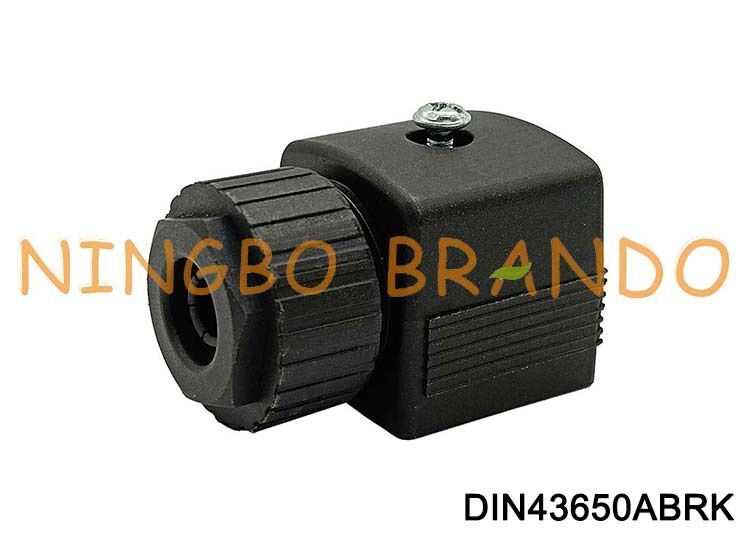

Burkert Type 2508 Solenoid Coil Cable Plug Connector DIN43650A 18mm DIN 43650 Type A
Type 2058 Cable Plug for the connection of electrical components according to DIN EN 175301-803 (previously DIN 43650, Form A). The type A DIN 43650 has a 28mm square base and is approximately 27 to 34mm high with 18mm spacing between the contacts. Type A connectors are available with two or three poles and earth and there are many gland sizes available to suit your cable diameters.
Technical Data of DIN43650A Solenoid Valve Connector:
|
DIN 43650 Type
|
DIN 43650 Form A
|
|
Cable Diameter
|
6 to 7mm
|
|
Contact Spacing
|
18mm
|
|
Number of Poles
|
2 Poles + Ground, 3 Poles + Ground
|
|
Current Rating
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Fixing Screw
|
M3x28mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Gasket
|
NBR
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V
|
Dimension of Type 2508 Cable Plug:
Product Video of Type 2508 Cable Plug:
More Solenoid Valve Coil Connectors for you to choose:
|
|
|
| DIN43650A | DIN43650B | DIN43650C |
|
|
|
| Waterproof | With Cable | Other |
