| 起源の場所: | 中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | DIN 43650B-WP |
| 最小注文数量: | 5個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 100,000 PCS/月 |
| 製品名: | DIN 43650のコネクター | 距離: | 11mm |
|---|---|---|---|
| 喧騒のタイプ: | DIN 43650の形態B | 形状: | 2+1GND、3+1GND |
| 定常電圧: | AC380V、DC300V | 保護クラス: | IP67 |
| Nomicalの流れ: | 10A | 接触抵抗: | ≤5mΩ |
| 最高のコンダクター セクション: | 3x1.5mmの² | 固定ねじ: | M3x30 |
| ハイライト: | DIN43650B IP67 Waterproof Solenoid Valve Coil Connector,Waterproof Solenoid Coil Connector DIN43650B,DIN43650B Connector IP67 water proof |
||

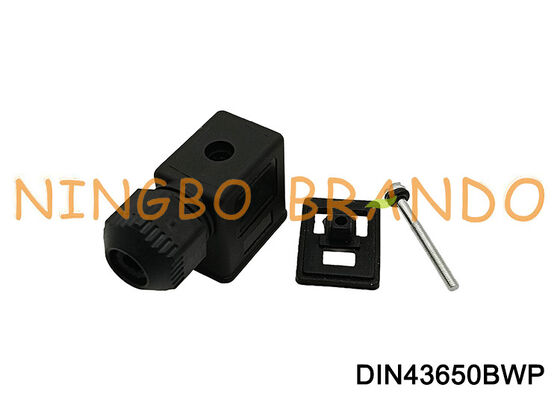

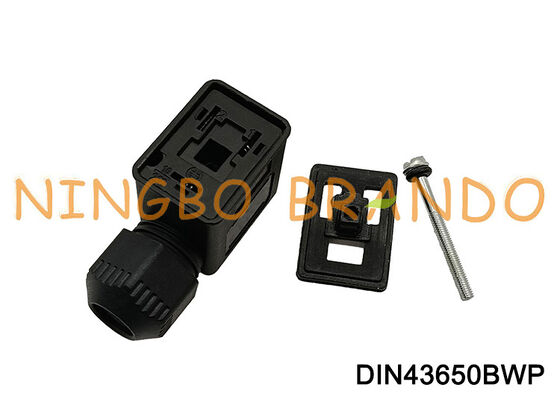

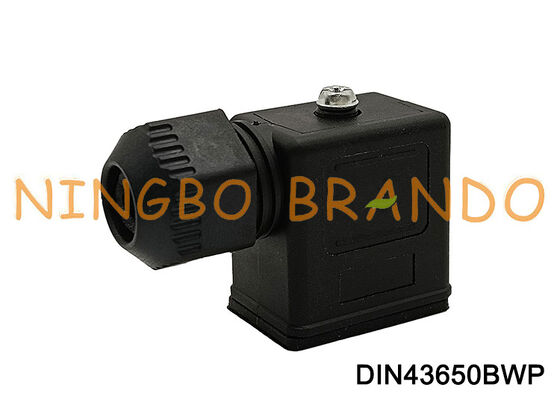

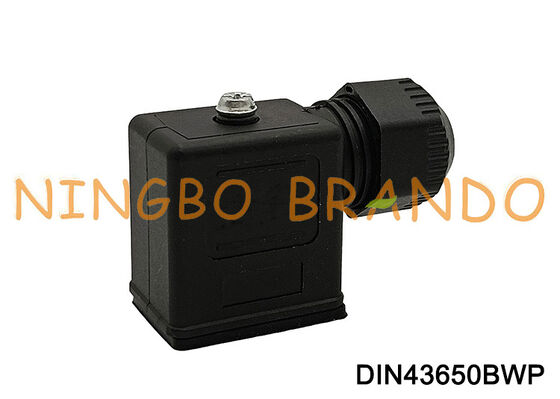

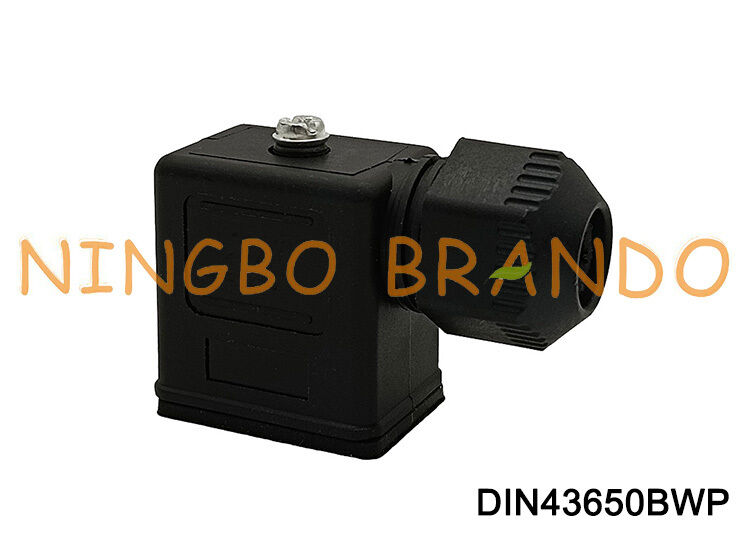

DIN43650B Waterproof Solenoid Valve Coil Connector IP67 DIN 43650 Form B
BRANDO's External-thread DIN 43650 Valve Connectors, with unsurpassed IP67 sealing properties and superior cable retention, increase performance, simplify manufacturing processes, reduce inventory and lower applied costs for hydraulic, pneumatic and electromagnetic devices. DIN 43650 solenoid connectors are suitable for use in varied industrial applications such as machine building and tooling or equipment manufacture. Other applications include facilitating power and signal transmission in magnetic valves, temperature sensors and pressure transducers.
Technical Data of DIN43650B Waterproof IP67 Solenoid Connector:
|
DIN 43650 Type
|
DIN 43650 Form B
|
|
Termination Method
|
Screw
|
|
Contact Spacing
|
11mm
|
|
Number of Poles
|
2 Poles + Ground, 3 Poles + Ground
|
|
Current Rating
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Fixing Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Gasket
|
NBR
|
|
Protection Class
|
IP67
|
|
Working Voltage
|
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V
|
Dimension of DIN43650B Waterproof Solenoid Coil Connector:
Product Video of DIN43650B Waterproof Solenoid Valve Connetor:
More Solenoid Valve Coil Connectors for you to choose:
|
|
|
| DIN43650A | DIN43650B | DIN43650C |
|
|
|
| Waterproof | With Cable | Other |
More Solenoid Valve Coils for you to choose:
|
|
|
|
| Pneumatic Solenoid Valve Coil | Pulse Valve Solenoid Coil | Water Solenoid Valve Coil | Hydraulic Solenoid Valve Coil |
