| 起源の場所: | 寧波、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | BB09325013 |
| 最小注文数量: | 200 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ペイパル、ウェスタンユニオン |
| 供給の能力: | 1 か月あたりの 250000 部分 |
| 製品名: | LPG CNGソレノイドコイル | 電圧: | DC12V |
|---|---|---|---|
| 力: | 48w | 抵抗: | 3Ohm |
| コネクタ: | プラグ | 色: | ブラック、ブルー、レッド |
| ハイライト: | 12v Solenoid Coil For Injector Rail,LPG Injector Rail Coil 3 Ohm,CNG Injector Rail Coil 3 Ohm |
||

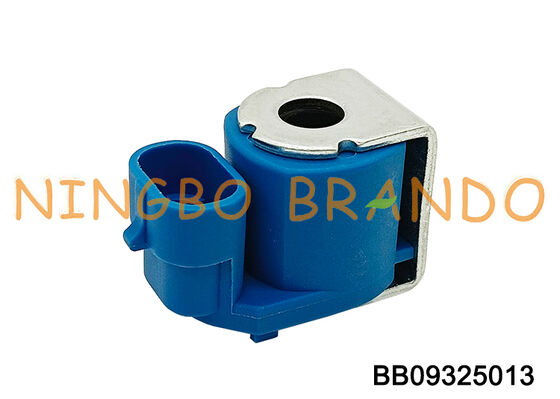

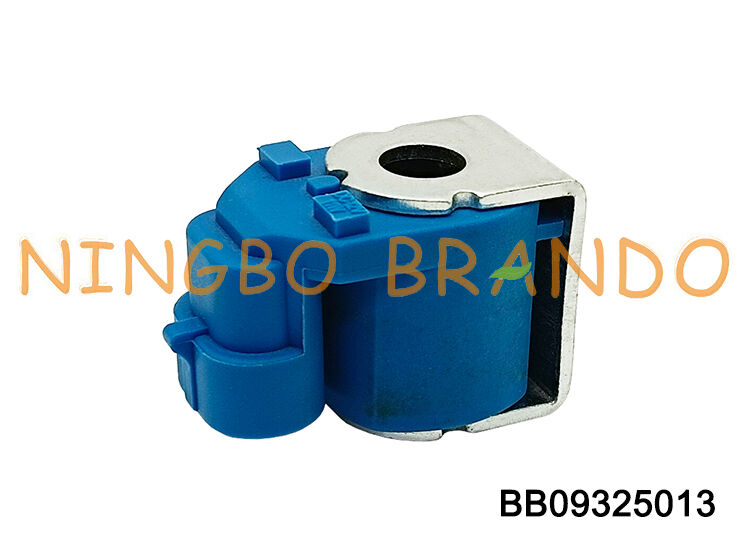

12V DC 3 Ohm IG1 LPG CNG Injector Rail Repair Kit Solenoid Coil
This 12VDC 3 ohm solenoid coil is popularly used in LPG CNG injector rails. The color of the solenoid coil can be customized according to your requirements, such as red, blue, black, etc. LPG CNG injector rail is used for CNG/LPG gaseous injection system. It has a function that measures gaseous fuel and injects it into the intake-manifold. It allows for correct control injection by corresponding to receive the signal from the ECU (Electronic Control Unit).
Dimension & Data of LPG CNG Solenoid Coil, Armature:
|
BRANDO Model
|
BB09325013
|
|
Voltage
|
12VDC
|
|
Power
|
48W
|
|
Resistance
|
3 Ohm
|
|
Other voltage and power can be customized
|
|
|
Connector
|
Plug
|
|
BRANDO Model
|
BAPC209329220
|
|
Function
|
2 Way Normally Closed
|
|
Plunger Tube Material
|
Stainless Steel
|
|
Plunger Tube Seat
|
M12 Thread
|
|
Seal Material
|
NBR, FKM |
Video of LPG CNG Solenoid Coil:
BRANDO Solenoid Valve Coils Production Video:
More LPG CNG Solenoid Coils for you to choose:
|
|
| Coil For CNG Reducer | Coil For Injector Rail |
|
|
| Coil For Solenoid Valve | Coil For Multivalve |
