| 起源の場所: | 寧波、中国 |
| ブランド名: | BRANDO |
| 証明: | None |
| モデル番号: | BB11041041 |
| 最小注文数量: | 200 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 内箱、カートン、パレット |
| 受渡し時間: | 交渉 |
| 支払条件: | T/T、ペイパル、ウェスタンユニオン |
| 供給の能力: | 1 か月あたりの 250000 部分 |
| 製品名: | トラックのソレノイドのコイル | 電圧: | DC24V |
|---|---|---|---|
| コネクタ: | 4ピン | 定格電流: | 0.32A |
| OEM番号: | 4423002221、4422002221、4422012221、4423012221、4422022621、1337734、1337735、A0005433985、42531617、81259026 | ||
| ハイライト: | Solenoid Valve for Scania WABCO 4423020021,Wabco Valve Magnet 4423002221,Truck Solenoid Valve Repair Kit |
||

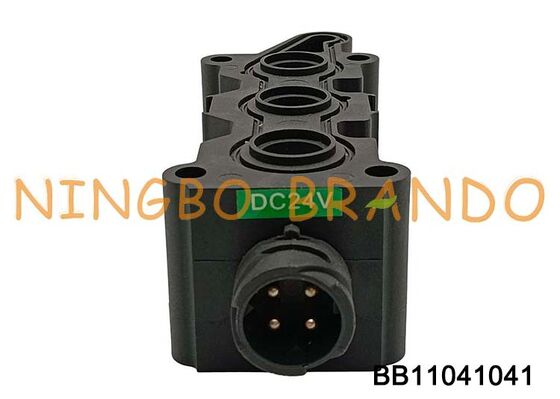

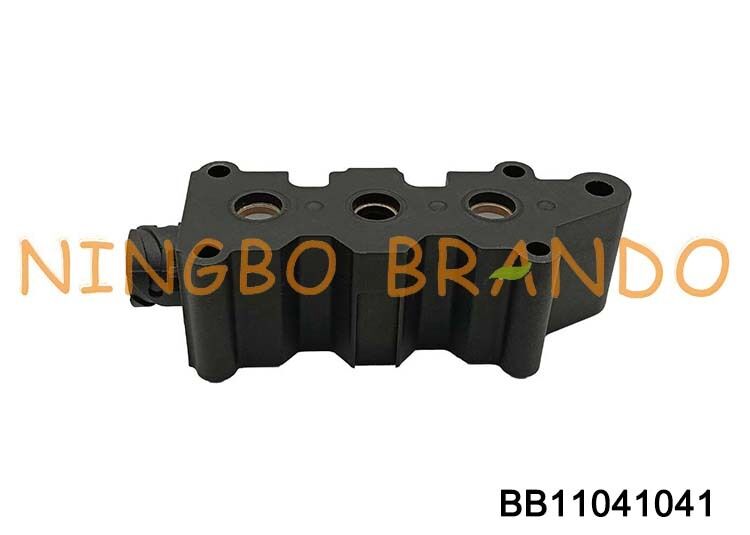

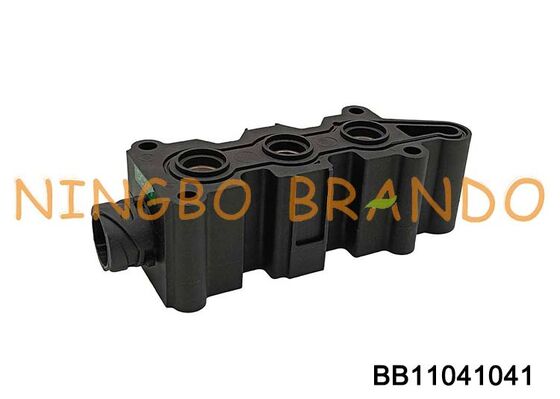

24VDC Coil For Truck Solenoid Valve Repair Kit 4422002221 4423002221
This is a 24VDC ECAS (Electronically Controlled Air Suspension) solenoid valve coil. It is designed as a replacement part for WABCO systems, with compatible OEM numbers including 4422002221 and 4423002221. The solenoid is intended for use in European commercial trucks, such as those from MAN, DAF, and Mercedes-Benz.
Dimension & Data of Truck Solenoid Valve Coil, Armature:
|
BRANDO Model
|
BB11041041
|
|
Voltage
|
24VDC
|
|
Rated Current
|
0.32A
|
|
Other voltage and power can be customzied
|
|
|
Protection Class
|
IP 6K7, IP 6K9K
|
|
Electrical Connection
|
4 Pins
|
|
BRANDO Model
|
BAPC311038505
|
|
Plunger Tube Material
|
Brass
|
|
Seal Material
|
NBR, FKM
|
|
Function
|
3 Way Normally Closed
|
|
Connection
|
Flange with O-ring Groove
|
Video of Truck Solenoid Valve Coil:
BRANDO Solenoid Valve Coils Production Video:
More Truck Solenoid Coils for you to choose:
|
|
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
